KIT AE-48S5RY
Architecture / House
Manual

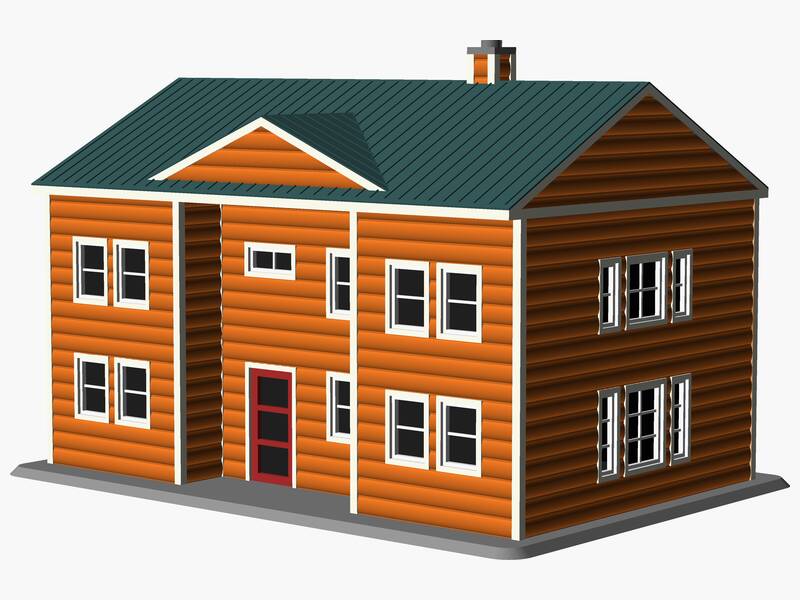

A 1/87 scale model of a two-story-style house. It features a 6/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 27 windows and 2 exterior doors. Architectural features include chimney with enclosed chase. The assembled model measures approximately 137 × 99 × 92 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 27
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Chimney with enclosed chase
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 136.72 | 98.16 | 91.58 |
| Perimeter #1 | 126.21 | 80.63 | 57.84 |
| Wall #2 | 38.56 | 57.84 | 1.75 |
| Wall #3 | 12.27 | 57.84 | 1.75 |
| Wall #4 | 47.33 | 57.84 | 1.79 |
| Wall #5 | 12.27 | 57.84 | 1.75 |
| Wall #6 | 38.56 | 57.84 | 1.75 |
| Wall #7 | 78.88 | 57.84 | 1.75 |
| Wall #8 | 124.45 | 57.84 | 1.79 |
| Wall #9 | 78.88 | 57.84 | 1.75 |
| Roof #10 | 126.21 | 87.64 | 32.02 |
| Base #11 | 136.72 | 98.16 | 1.75 |
