KIT AE-3XS5RY
Architecture / House
Manual

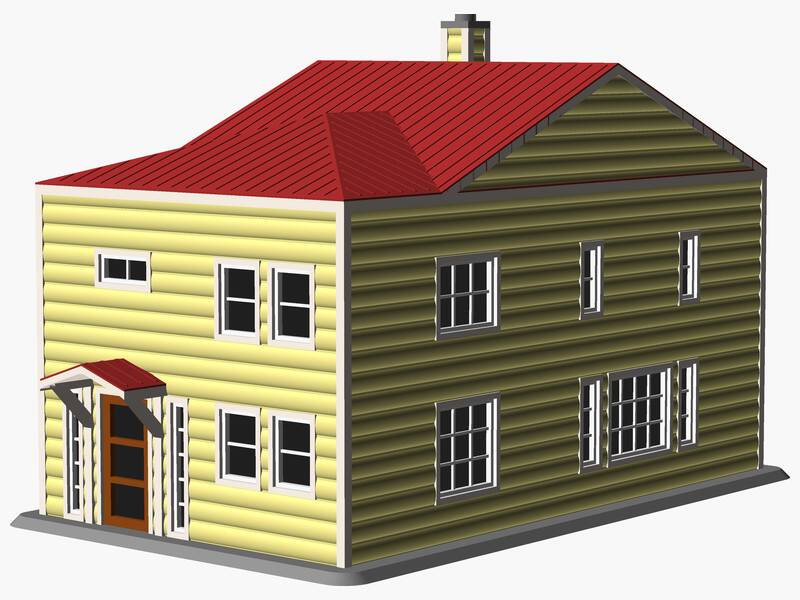

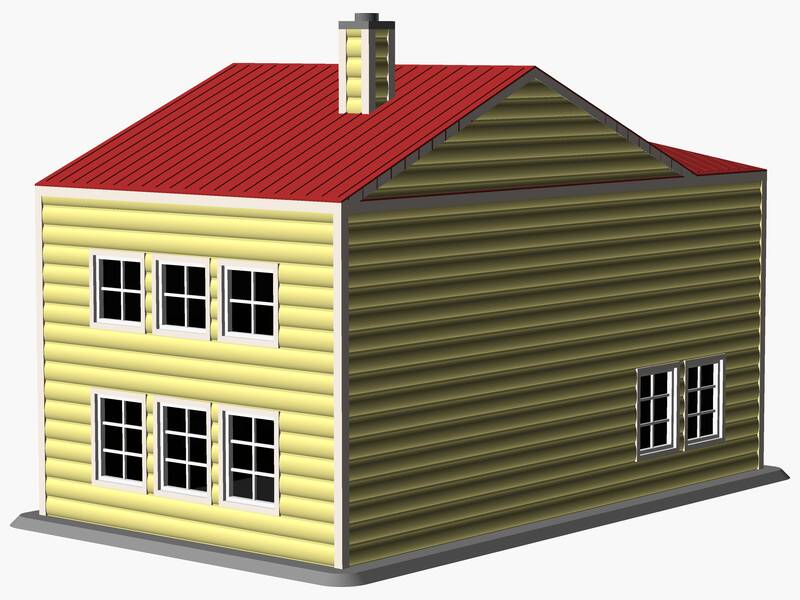

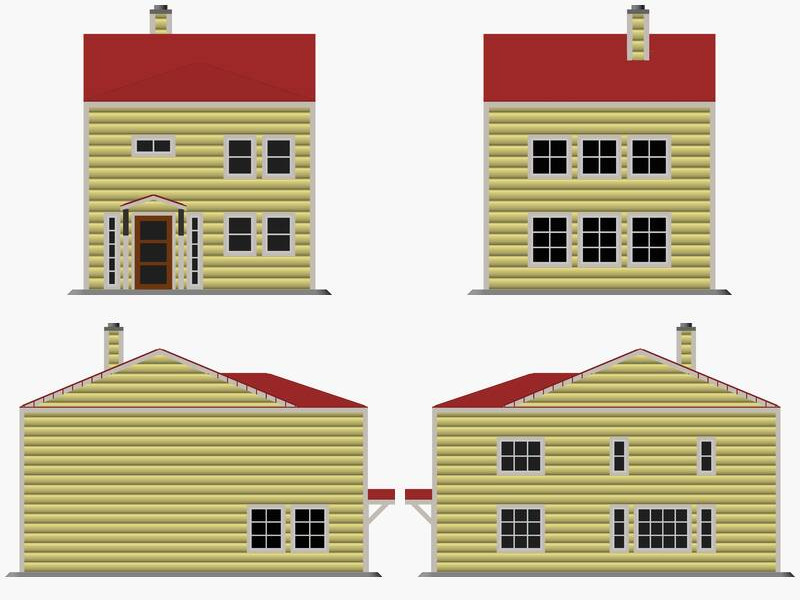

A 1/87 scale model of a two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 22 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 85 × 142 × 93 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 22
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Chimney with enclosed chase
- glass-panel door

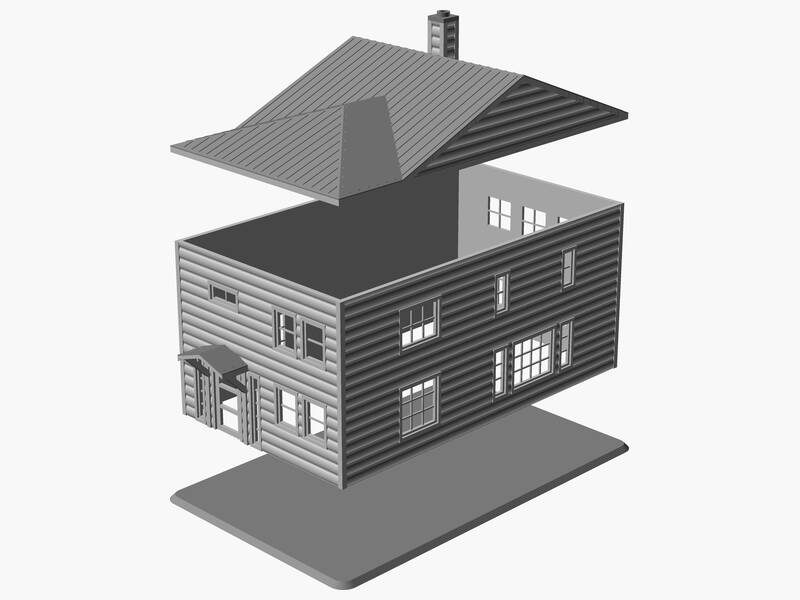

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 84.14 | 141.28 | 92.02 |
| Perimeter #1 | 73.62 | 136.02 | 57.84 |
| Wall #2 | 71.87 | 57.84 | 11.60 |
| Wall #3 | 124.45 | 57.84 | 1.75 |
| Wall #4 | 71.87 | 57.84 | 1.75 |
| Wall #5 | 124.45 | 57.84 | 1.75 |
| Roof #6 | 73.62 | 126.21 | 32.46 |
| Base #7 | 84.14 | 136.72 | 1.75 |
