KIT AE-32S5RY
Architecture / House
Manual
Two-story House

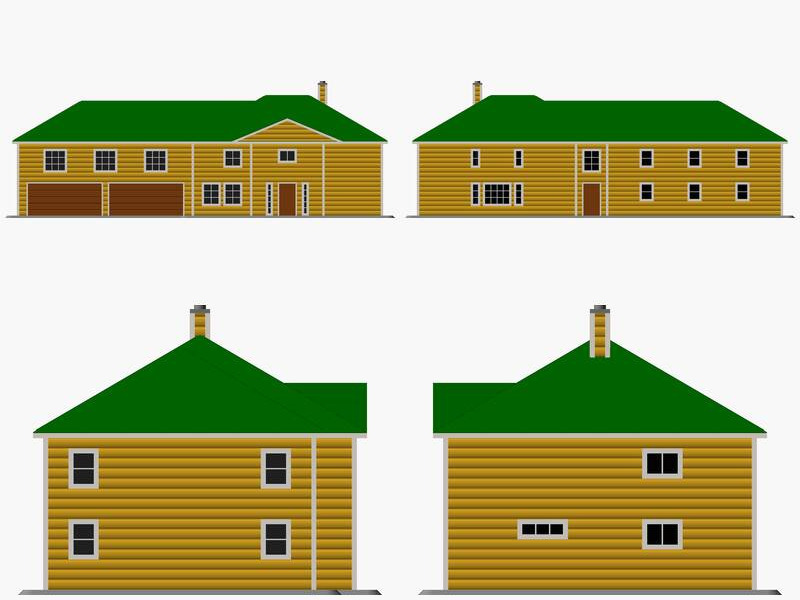

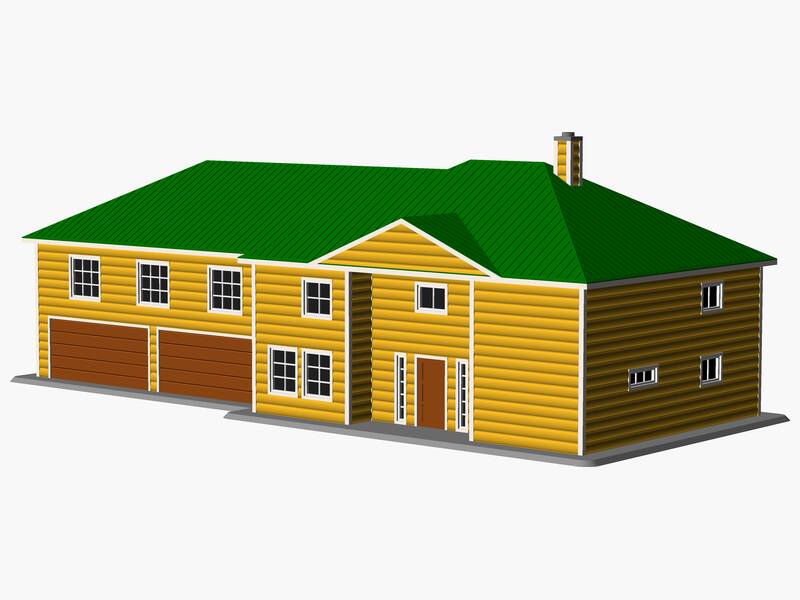

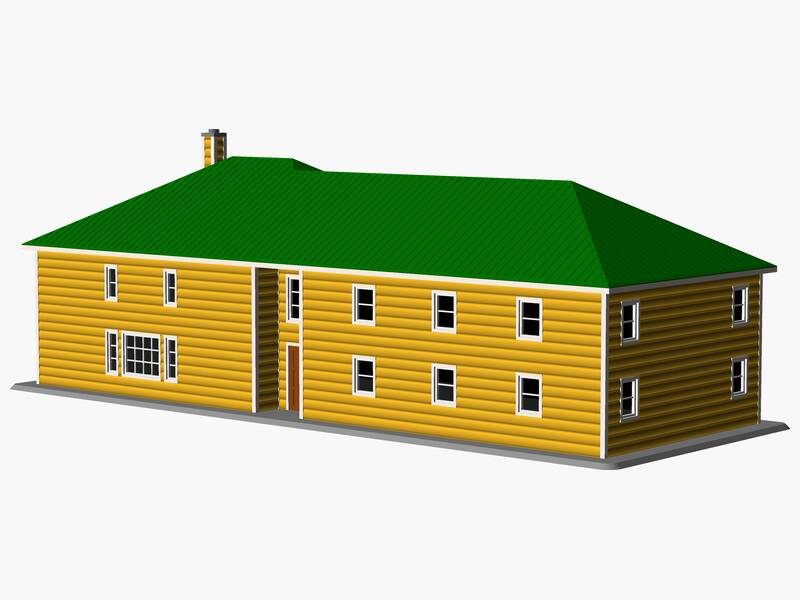

A 1/87 scale model of a two-story-style house. It features a 7/12 pitch hip roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 28 windows and 4 exterior doors. Architectural features include an overhead garage door, chimney with enclosed chase. The assembled model measures approximately 286 × 127 × 101 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 28
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Attached garage
- chimney with enclosed chase
- double-panel door
- overhead garage door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 285.72 | 126.21 | 100.49 |
| Perimeter #1 | 268.19 | 108.68 | 52.59 |
| Wall #2 | 42.77 | 52.59 | 1.75 |
| Wall #3 | 12.27 | 52.59 | 1.75 |
| Wall #4 | 52.94 | 52.59 | 1.79 |
| Wall #5 | 12.27 | 52.59 | 1.75 |
| Wall #6 | 42.77 | 52.59 | 1.75 |
| Wall #7 | 14.02 | 52.59 | 1.75 |
| Wall #8 | 127.96 | 52.59 | 1.79 |
| Wall #9 | 92.90 | 52.59 | 1.75 |
| Wall #10 | 127.96 | 52.59 | 1.75 |
| Wall #11 | 12.27 | 52.59 | 1.75 |
| Wall #12 | 22.79 | 52.59 | 1.79 |
| Wall #13 | 12.27 | 52.59 | 1.75 |
| Wall #14 | 115.69 | 52.59 | 1.75 |
| Wall #15 | 106.93 | 52.59 | 1.75 |
| Roof #16 | 275.20 | 115.69 | 46.19 |
| Base #17 | 285.72 | 126.21 | 1.75 |
