KIT AD-IIQ5RY
Architecture / House
Manual
Ranch House

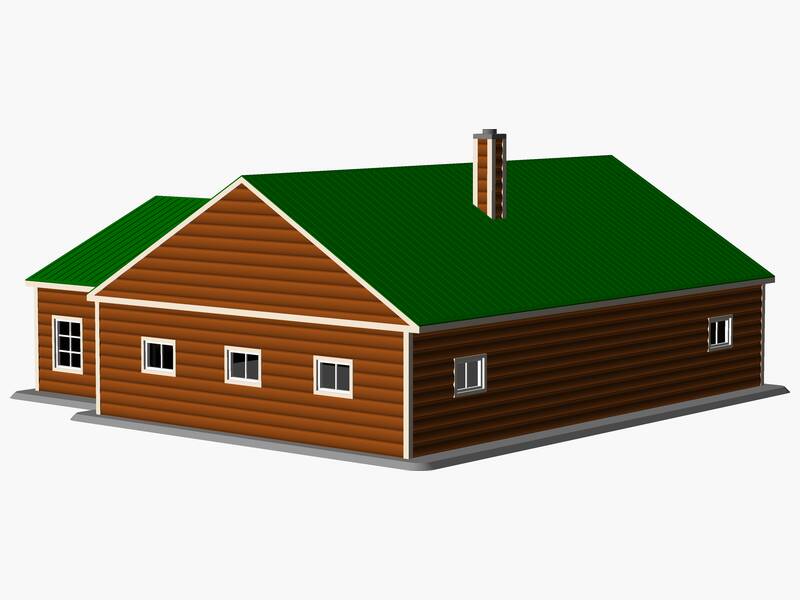

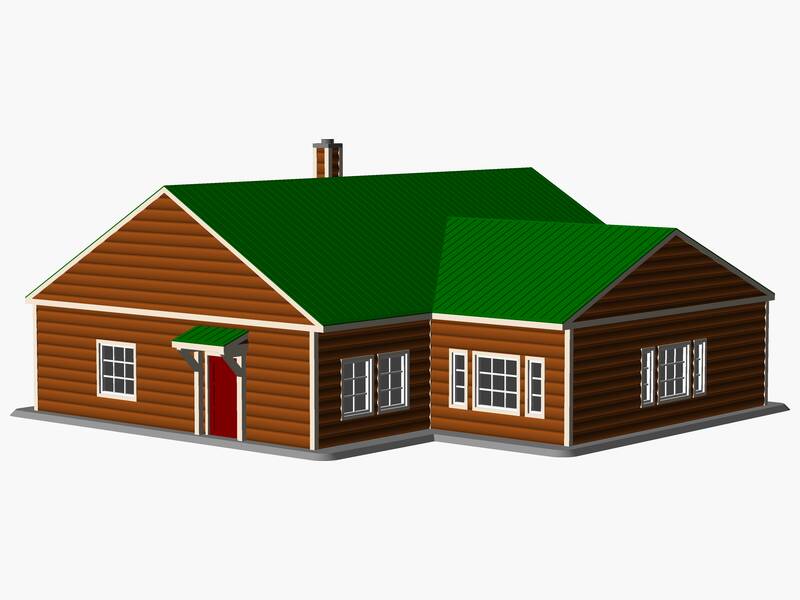

A 1/87 scale model of a ranch-style house. It features a 7/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 17 windows and a single exterior door. Architectural features include a side addition, chimney with enclosed chase. The assembled model measures approximately 185 × 194 × 86 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 17
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Side addition
- chimney with enclosed chase
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 184.05 | 193.87 | 85.15 |
| Perimeter #1 | 170.03 | 188.61 | 33.30 |
| Wall #2 | 117.44 | 33.30 | 11.60 |
| Wall #3 | 50.83 | 33.30 | 1.75 |
| Wall #4 | 50.83 | 33.30 | 1.75 |
| Wall #5 | 105.17 | 33.30 | 1.75 |
| Wall #6 | 50.83 | 33.30 | 1.75 |
| Wall #7 | 21.03 | 33.30 | 1.75 |
| Wall #8 | 117.44 | 33.30 | 1.75 |
| Wall #9 | 177.04 | 33.30 | 1.75 |
| Roof #10 | 173.53 | 178.79 | 50.13 |
| Base #11 | 184.05 | 189.31 | 1.75 |
