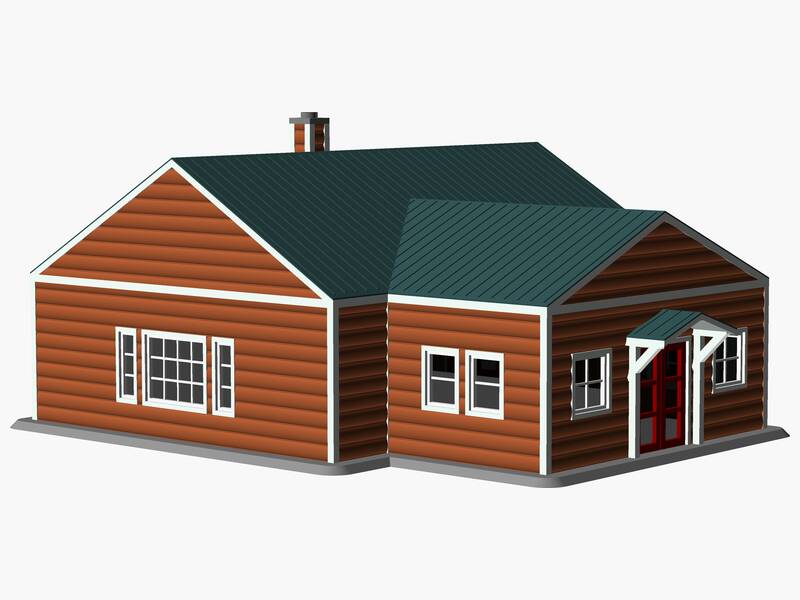

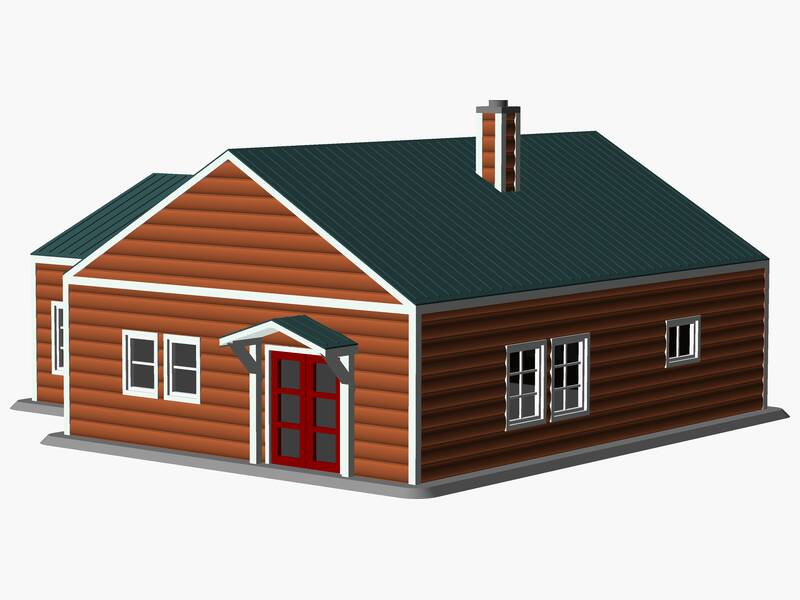

Ranch House
A 1/87 scale model of a ranch-style house. It features a 7/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 16 windows and 2 exterior doors. Architectural features include a side addition, chimney with enclosed chase. The assembled model measures approximately 158 × 149 × 75 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 16
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Side addition
- chimney with enclosed chase
- double-panel door
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 157.06 | 148.29 | 74.64 |
| Perimeter #1 | 151.80 | 143.03 | 33.30 |
| Wall #2 | 96.41 | 33.30 | 11.60 |
| Wall #3 | 31.38 | 33.30 | 1.75 |
| Wall #4 | 43.82 | 33.30 | 1.75 |
| Wall #5 | 82.56 | 33.30 | 11.60 |
| Wall #6 | 43.82 | 33.30 | 1.75 |
| Wall #7 | 17.53 | 33.30 | 1.75 |
| Wall #8 | 96.41 | 33.30 | 1.75 |
| Wall #9 | 131.47 | 33.30 | 1.75 |
| Roof #10 | 141.98 | 133.22 | 39.61 |
| Base #11 | 152.50 | 143.74 | 1.75 |
