KIT AD-G0R5RY
Architecture / House
Manual
Ranch House

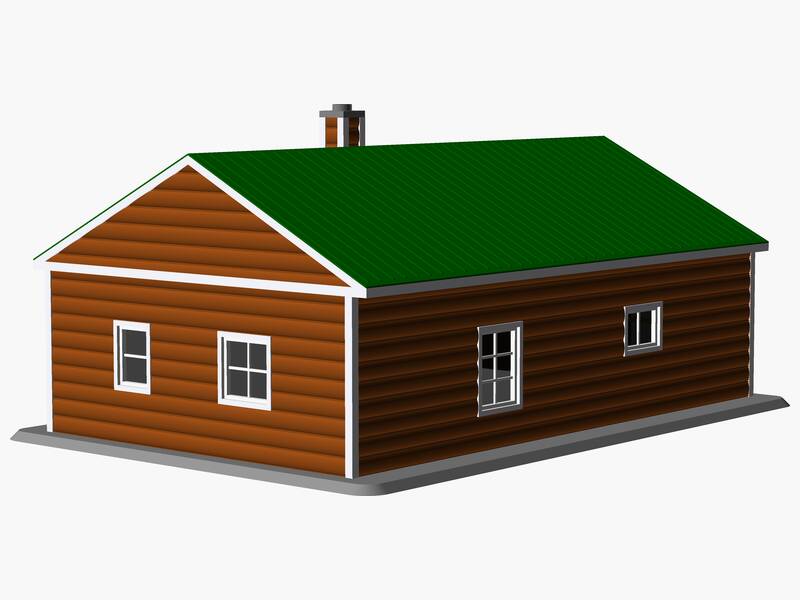

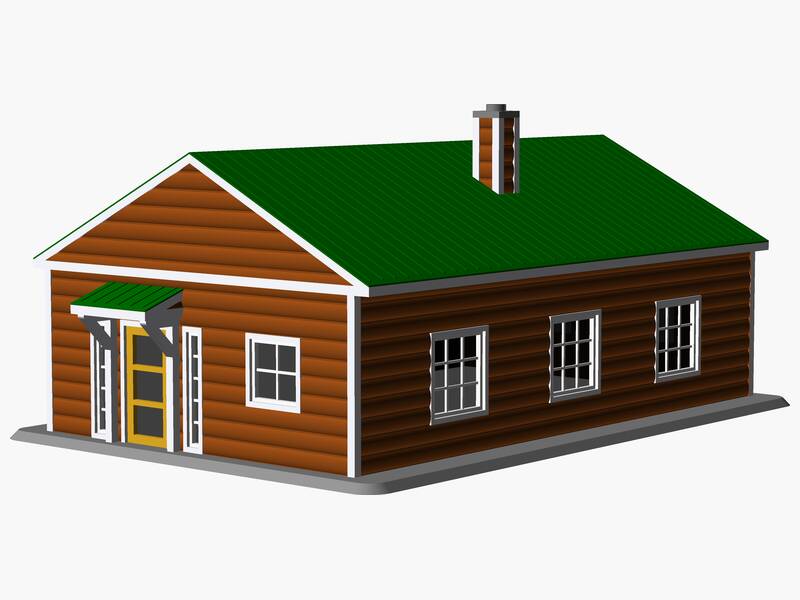

A 1/87 scale model of a ranch-style house. It features a 6/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 10 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 102 × 152 × 69 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 10
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Chimney with enclosed chase
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 101.67 | 151.80 | 68.21 |
| Perimeter #1 | 84.14 | 146.54 | 33.30 |
| Wall #2 | 82.39 | 33.30 | 11.60 |
| Wall #3 | 134.97 | 33.30 | 1.75 |
| Wall #4 | 82.39 | 33.30 | 1.75 |
| Wall #5 | 134.97 | 33.30 | 1.75 |
| Roof #6 | 91.15 | 136.72 | 33.19 |
| Base #7 | 101.67 | 147.24 | 1.75 |
