KIT AD-43R5RY
Architecture / House
Manual

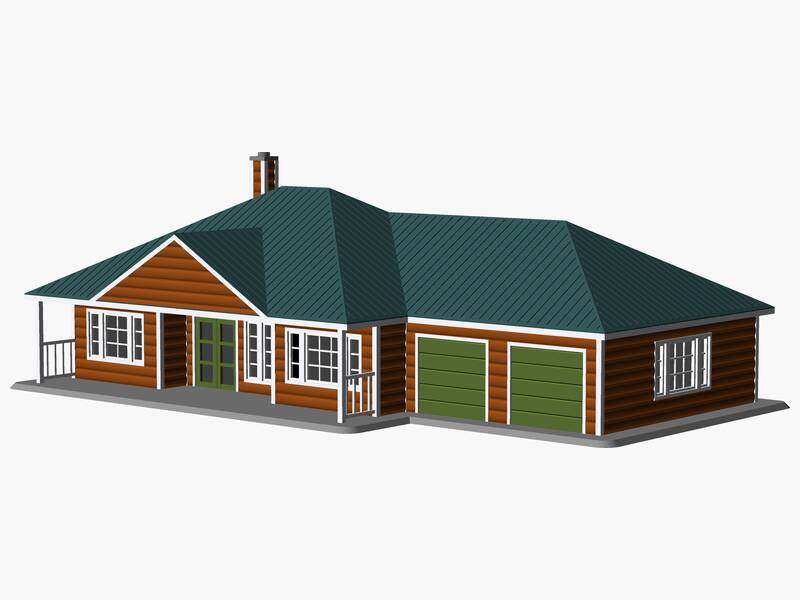

Ranch House

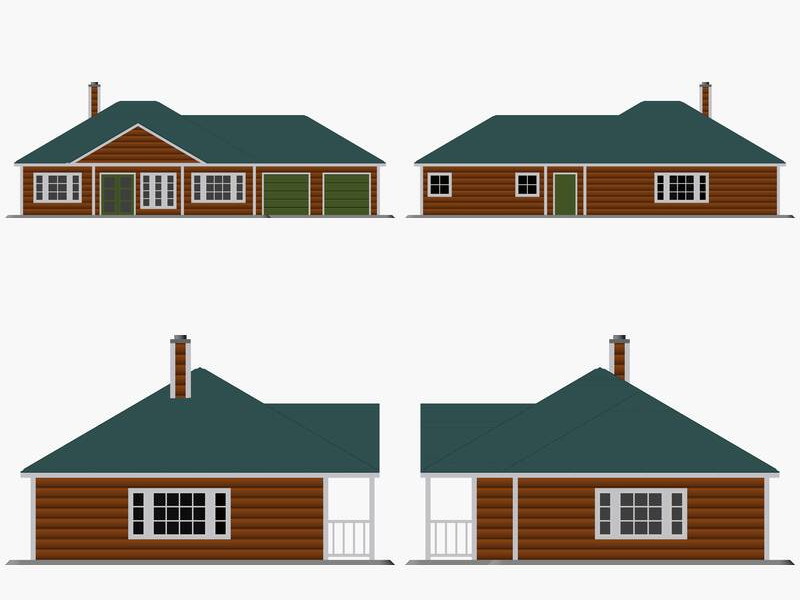

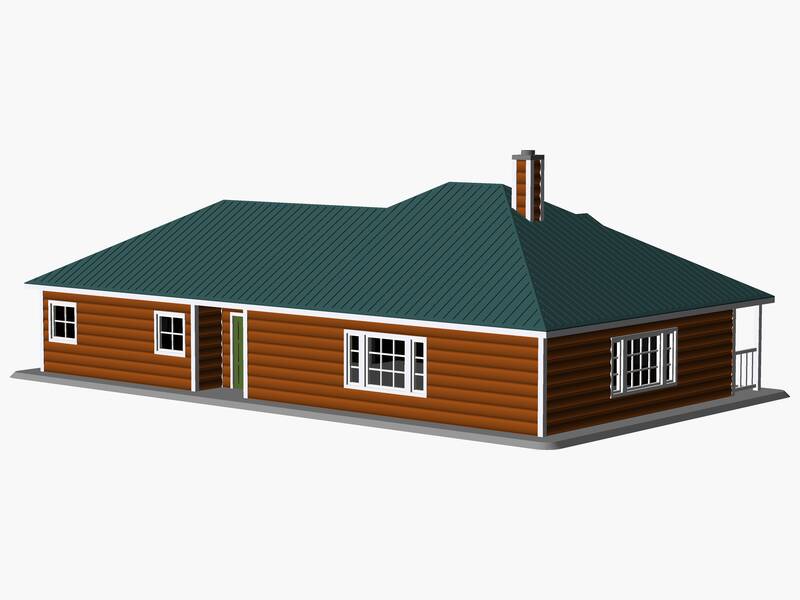

A 1/87 scale model of a ranch-style house. It features a 7/12 pitch hip roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 20 windows and 4 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 227 × 134 × 79 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 20
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- overhead garage door
- support posts and railings

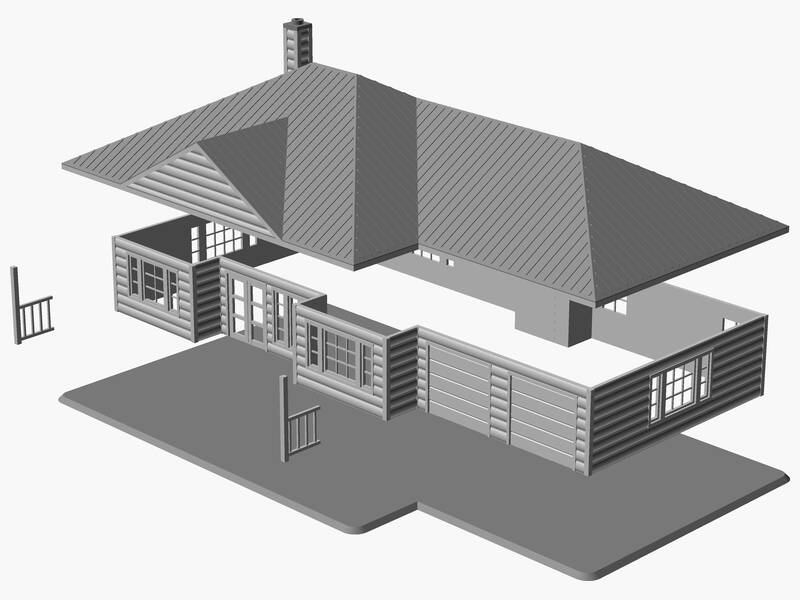

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 226.12 | 133.22 | 78.58 |
| Perimeter #1 | 208.59 | 101.67 | 28.05 |
| Wall #2 | 41.72 | 28.05 | 1.75 |
| Wall #3 | 12.27 | 28.05 | 1.75 |
| Wall #4 | 51.53 | 28.05 | 1.79 |
| Wall #5 | 12.27 | 28.05 | 1.75 |
| Wall #6 | 41.72 | 28.05 | 1.75 |
| Wall #7 | 14.02 | 28.05 | 1.75 |
| Wall #8 | 71.87 | 28.05 | 1.79 |
| Wall #9 | 85.89 | 28.05 | 1.75 |
| Wall #10 | 71.87 | 28.05 | 1.75 |
| Wall #11 | 12.27 | 28.05 | 1.75 |
| Wall #12 | 22.79 | 28.05 | 1.79 |
| Wall #13 | 12.27 | 28.05 | 1.75 |
| Wall #14 | 112.18 | 28.05 | 1.75 |
| Wall #15 | 99.91 | 28.05 | 1.75 |
| Roof #16 | 215.60 | 122.70 | 48.82 |
| Base #17 | 226.12 | 133.22 | 1.75 |
| Railing #18 | 15.78 | 28.05 | 1.75 |
| Railing #19 | 15.78 | 28.05 | 1.75 |
