KIT AD-2HSFRY
Architecture / House
Manual
Ranch House

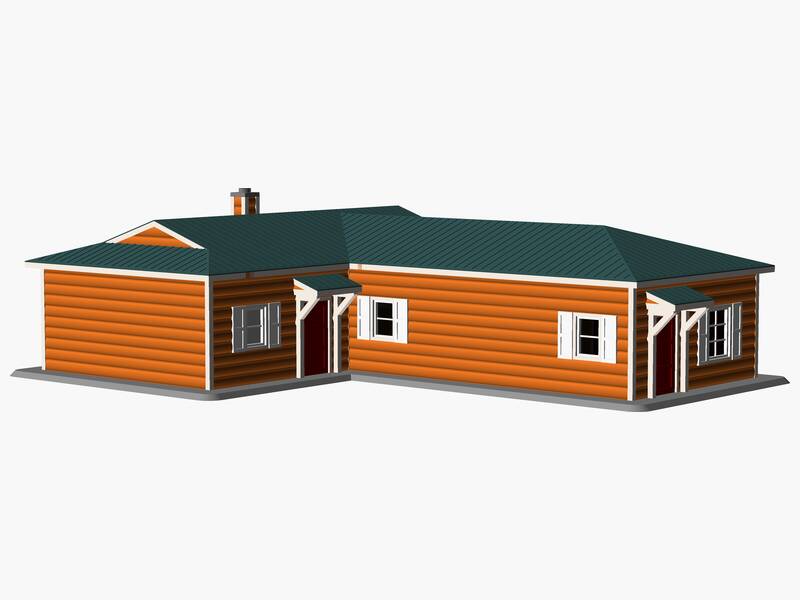

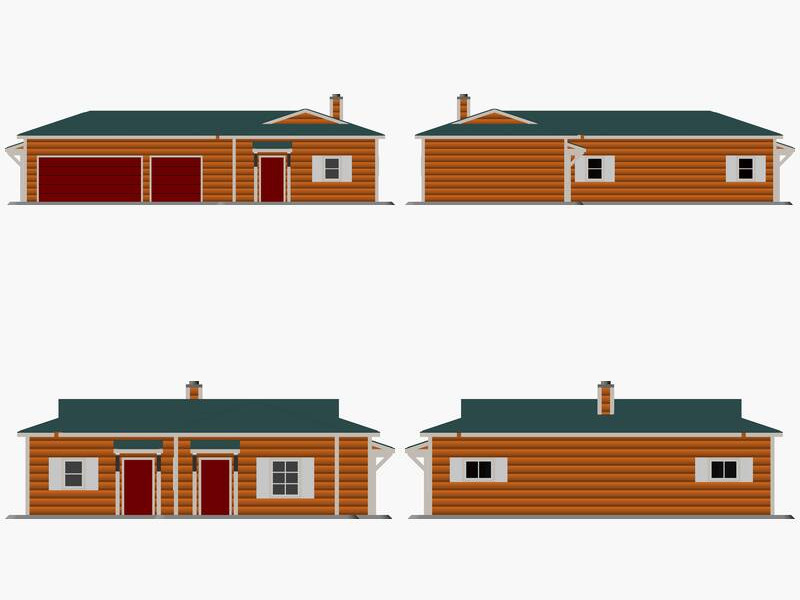

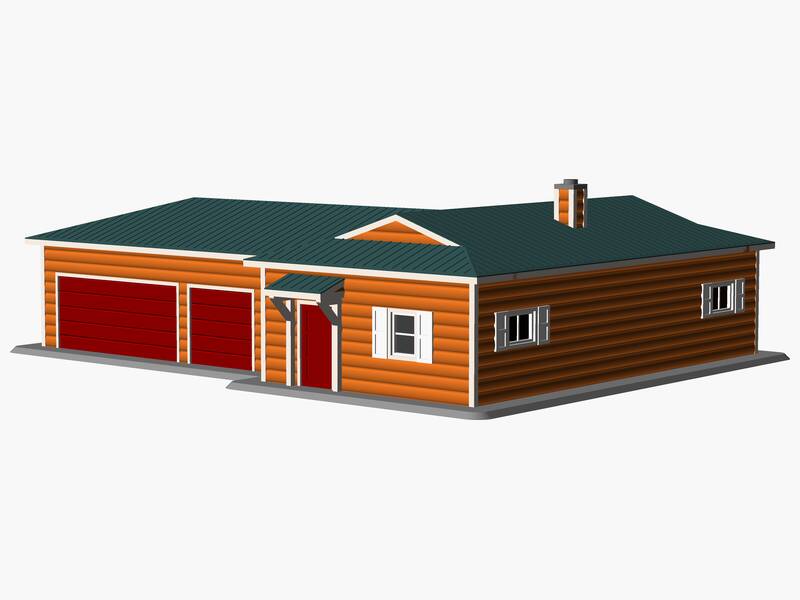

A 1/87 scale model of a ranch-style house. It features a 4/12 pitch hip roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 7 windows and 5 exterior doors. Architectural features include an overhead garage door, window shutters, chimney with enclosed chase. The assembled model measures approximately 207 × 166 × 59 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 7
- Exterior Doors
- 5
- Roof Type
- Hip
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Attached garage
- chimney with enclosed chase
- double-panel door
- overhead garage door
- window shutters
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 206.14 | 165.82 | 58.86 |
| Perimeter #1 | 197.72 | 157.06 | 33.30 |
| Wall #2 | 75.37 | 33.30 | 11.60 |
| Wall #3 | 14.02 | 33.30 | 1.75 |
| Wall #4 | 110.43 | 33.30 | 1.79 |
| Wall #5 | 68.36 | 33.30 | 11.60 |
| Wall #6 | 110.43 | 33.30 | 2.10 |
| Wall #7 | 63.10 | 33.30 | 11.60 |
| Wall #8 | 75.37 | 33.30 | 1.75 |
| Wall #9 | 145.49 | 33.30 | 2.10 |
| Roof #10 | 194.57 | 154.25 | 23.84 |
| Base #11 | 205.09 | 164.77 | 1.75 |
