KIT AD-27R5RY
Architecture / House
Manual

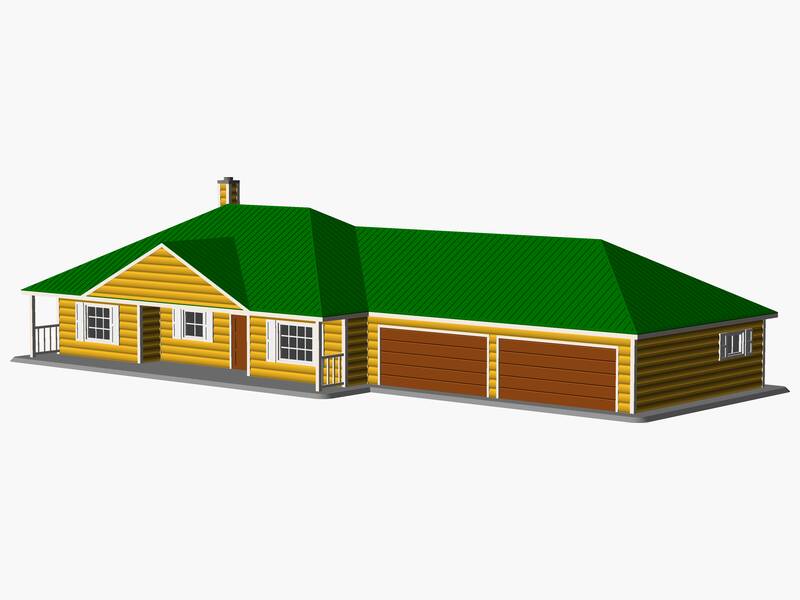

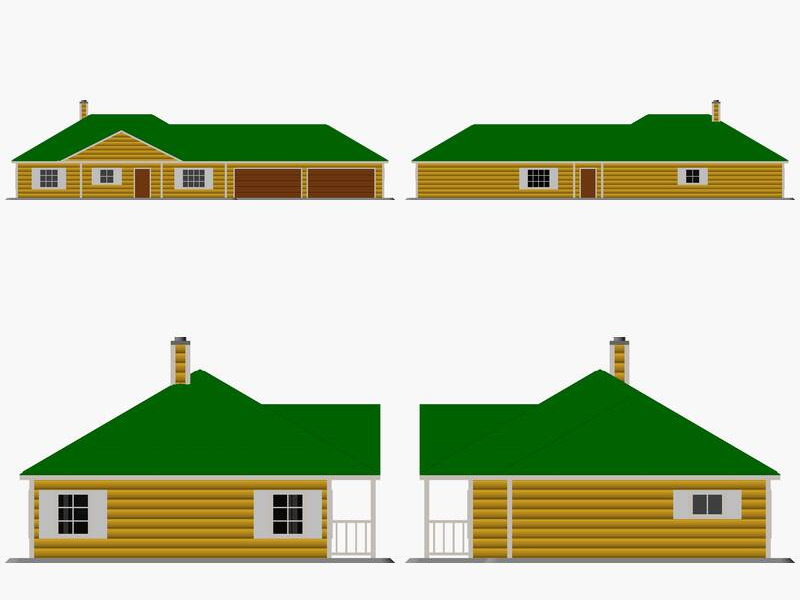

A 1/87 scale model of a ranch-style house. It features a 7/12 pitch hip roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 8 windows and 4 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, window shutters, chimney with enclosed chase. The assembled model measures approximately 318 × 141 × 82 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 8
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- overhead garage door
- support posts and railings
- window shutters
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 317.27 | 140.23 | 81.21 |
| Perimeter #1 | 300.44 | 109.38 | 28.05 |
| Wall #2 | 52.24 | 28.05 | 2.10 |
| Wall #3 | 12.27 | 28.05 | 1.75 |
| Wall #4 | 65.56 | 28.05 | 2.14 |
| Wall #5 | 12.27 | 28.05 | 1.75 |
| Wall #6 | 52.24 | 28.05 | 2.10 |
| Wall #7 | 14.02 | 28.05 | 1.75 |
| Wall #8 | 127.96 | 28.05 | 1.79 |
| Wall #9 | 92.90 | 28.05 | 2.10 |
| Wall #10 | 127.96 | 28.05 | 2.10 |
| Wall #11 | 12.27 | 28.05 | 1.75 |
| Wall #12 | 22.79 | 28.05 | 1.79 |
| Wall #13 | 12.27 | 28.05 | 1.75 |
| Wall #14 | 147.24 | 28.05 | 2.10 |
| Wall #15 | 106.93 | 28.05 | 2.10 |
| Roof #16 | 306.75 | 129.71 | 51.45 |
| Base #17 | 317.27 | 140.23 | 1.75 |
| Railing #18 | 15.78 | 28.05 | 1.75 |
| Railing #19 | 15.78 | 28.05 | 1.75 |
