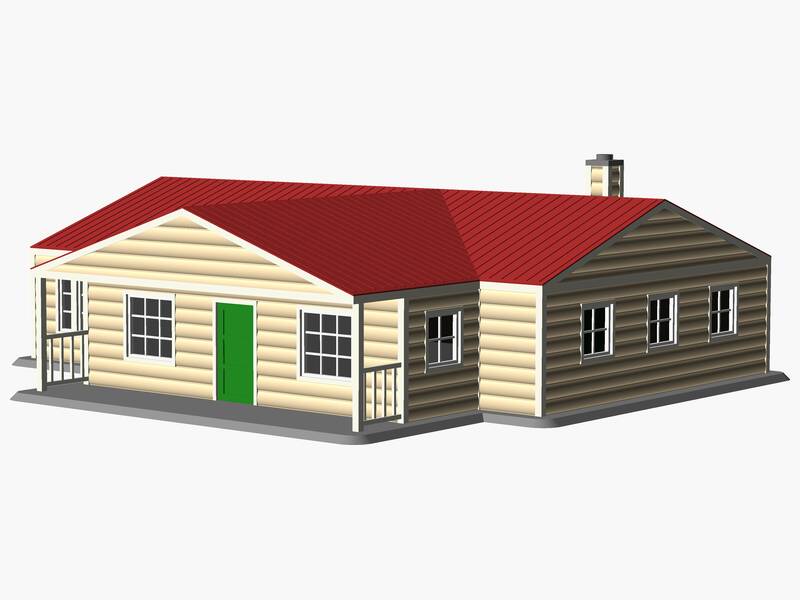

Ranch House
A 1/87 scale model of a ranch-style house. It features a 4/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 14 windows and 3 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 179 × 158 × 58 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 14
- Exterior Doors
- 3
- Roof Type
- Gable
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- overhead garage door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 178.79 | 157.76 | 57.99 |
| Perimeter #1 | 168.28 | 129.71 | 28.05 |
| Wall #2 | 99.91 | 28.05 | 1.79 |
| Wall #3 | 28.05 | 28.05 | 1.75 |
| Wall #4 | 49.08 | 28.05 | 1.75 |
| Wall #5 | 99.91 | 28.05 | 1.79 |
| Wall #6 | 166.52 | 28.05 | 1.79 |
| Wall #7 | 99.91 | 28.05 | 1.75 |
| Wall #8 | 17.53 | 28.05 | 1.75 |
| Wall #9 | 28.05 | 28.05 | 1.75 |
| Roof #10 | 168.28 | 147.24 | 28.22 |
| Base #11 | 178.79 | 157.76 | 1.75 |
| Railing #12 | 15.78 | 28.05 | 1.75 |
| Railing #13 | 15.78 | 28.05 | 1.75 |
