KIT AD-04R5RY
Architecture / House
Manual

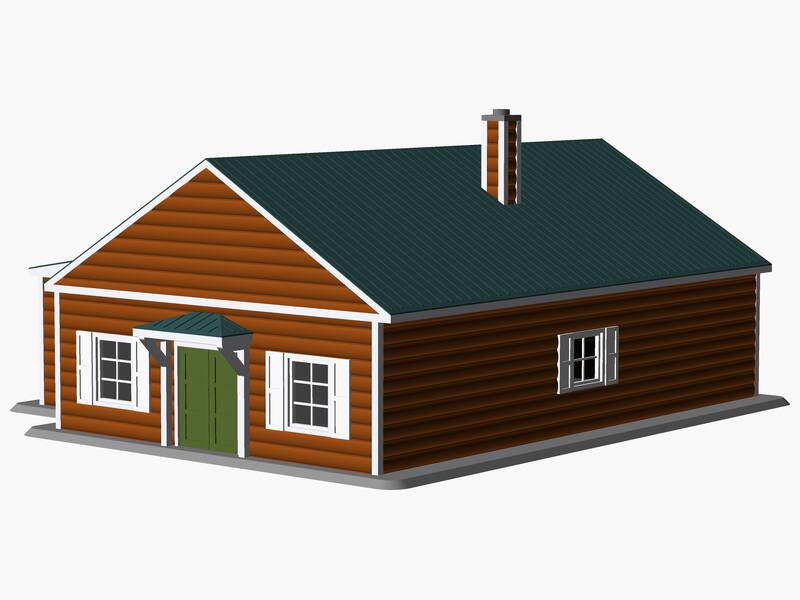

Ranch House
A 1/87 scale model of a ranch-style house. It features a 7/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 6 windows and 2 exterior doors. Architectural features include a side addition, window shutters, chimney with enclosed chase. The assembled model measures approximately 152 × 173 × 79 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 6
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Side addition
- chimney with enclosed chase
- double-panel door
- window shutters
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 151.92 | 172.83 | 78.58 |
| Perimeter #1 | 135.09 | 167.93 | 33.30 |
| Wall #2 | 99.91 | 33.30 | 11.60 |
| Wall #3 | 24.54 | 33.30 | 1.75 |
| Wall #4 | 32.72 | 33.30 | 2.10 |
| Wall #5 | 106.93 | 33.30 | 2.10 |
| Wall #6 | 32.72 | 33.30 | 11.60 |
| Wall #7 | 24.54 | 33.30 | 1.75 |
| Wall #8 | 99.91 | 33.30 | 2.10 |
| Wall #9 | 156.01 | 33.30 | 2.10 |
| Roof #10 | 141.40 | 157.76 | 43.56 |
| Base #11 | 151.92 | 168.28 | 1.75 |
