Architecture / House
Build Guide ·
Ranch House

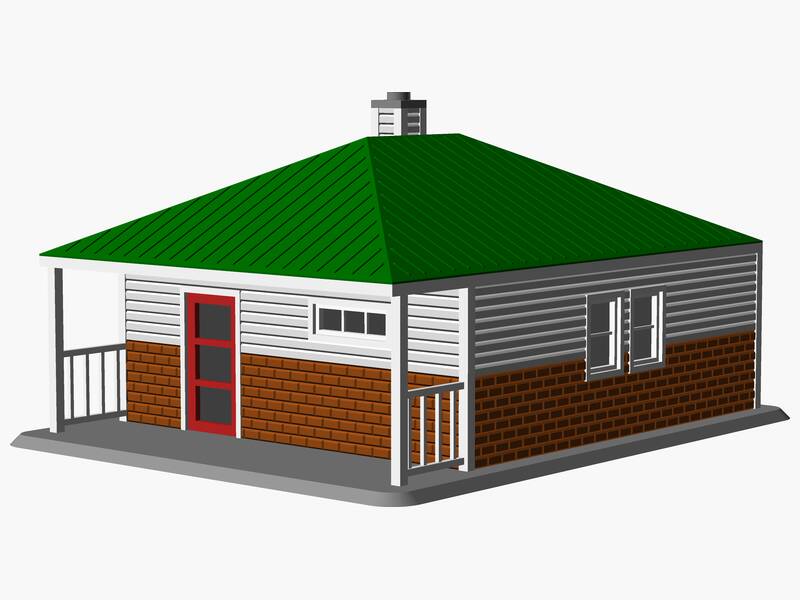

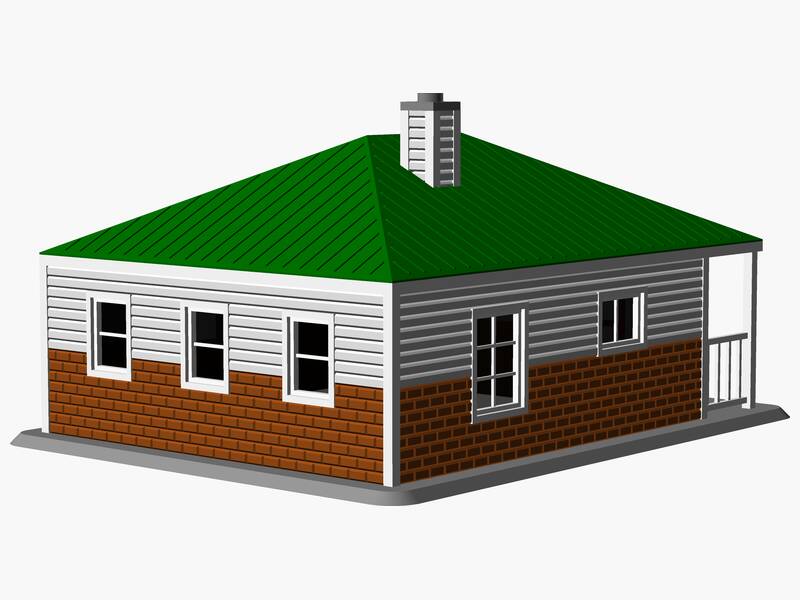

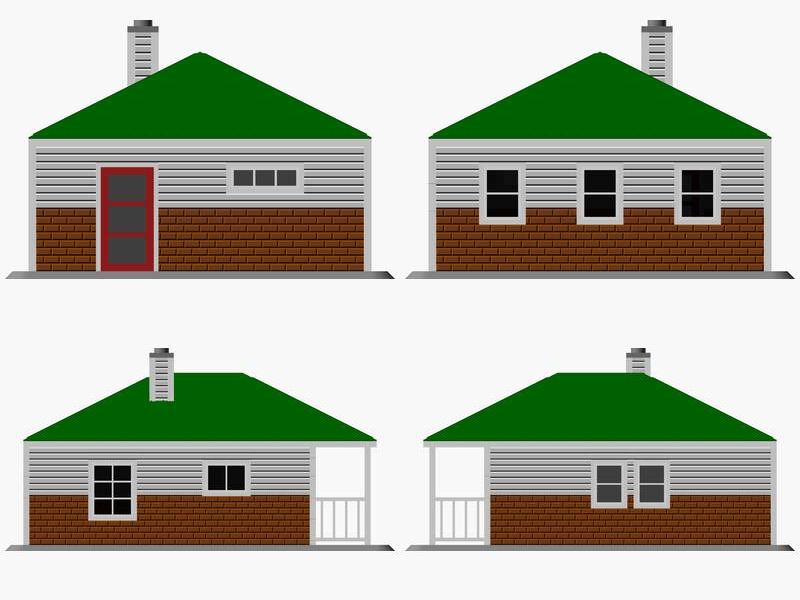

A 1/87 scale model of a ranch-style house. It features a 6/12 pitch hip roof. Exterior materials include brick veneer lower with vinyl or wood upper siding with a standing seam metal roof system. The structure includes 8 windows and a single exterior door. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 88 × 113 × 59 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 8
- Exterior Doors
- 1
- Roof Type
- Hip
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer lower with vinyl or wood upper exterior siding
Features
- Covered front porch
- chimney with enclosed chase
- glass-panel door
- support posts and railings

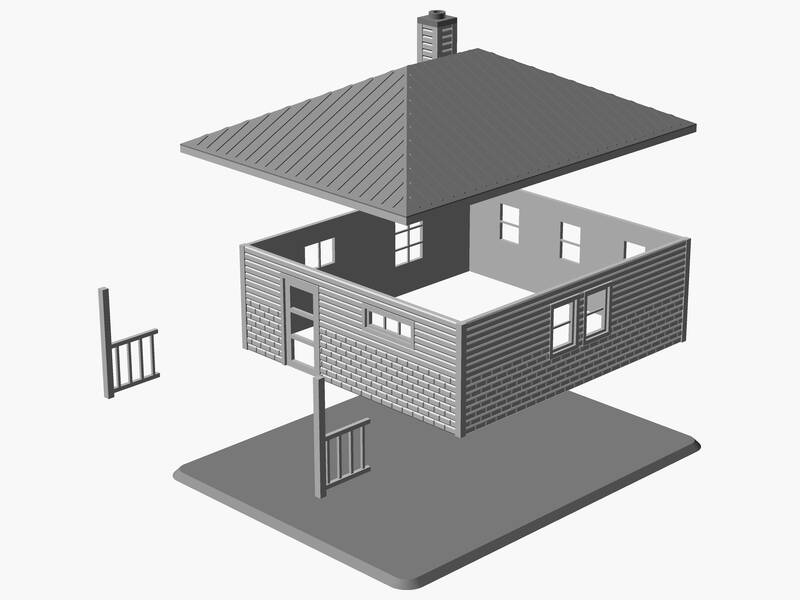

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 87.64 | 112.18 | 58.28 |
| Perimeter #1 | 77.13 | 84.14 | 28.05 |
| Wall #2 | 75.37 | 28.05 | 1.79 |
| Wall #3 | 82.39 | 28.05 | 1.75 |
| Wall #4 | 75.37 | 28.05 | 1.75 |
| Wall #5 | 82.39 | 28.05 | 1.75 |
| Roof #6 | 77.13 | 101.67 | 28.51 |
| Base #7 | 87.64 | 112.18 | 1.75 |
| Railing #8 | 15.78 | 28.05 | 1.75 |
| Railing #9 | 15.78 | 28.05 | 1.75 |
