Ranch House

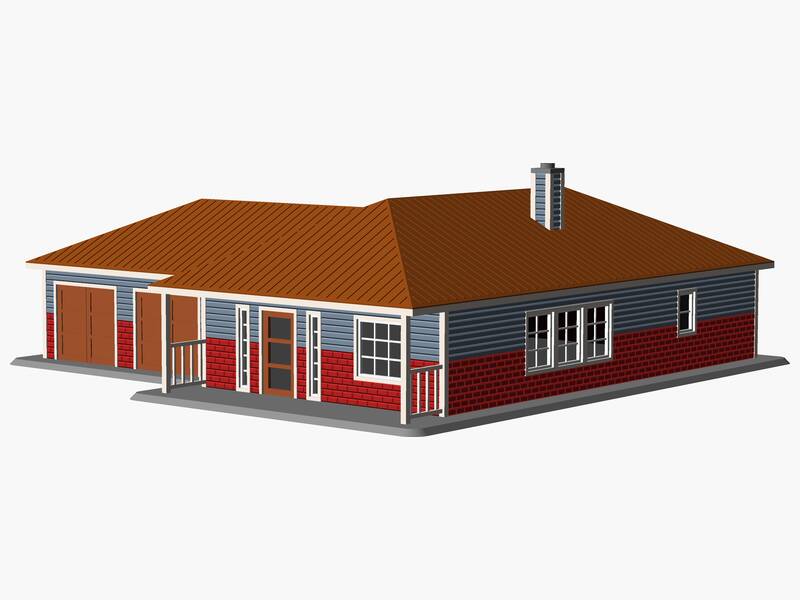

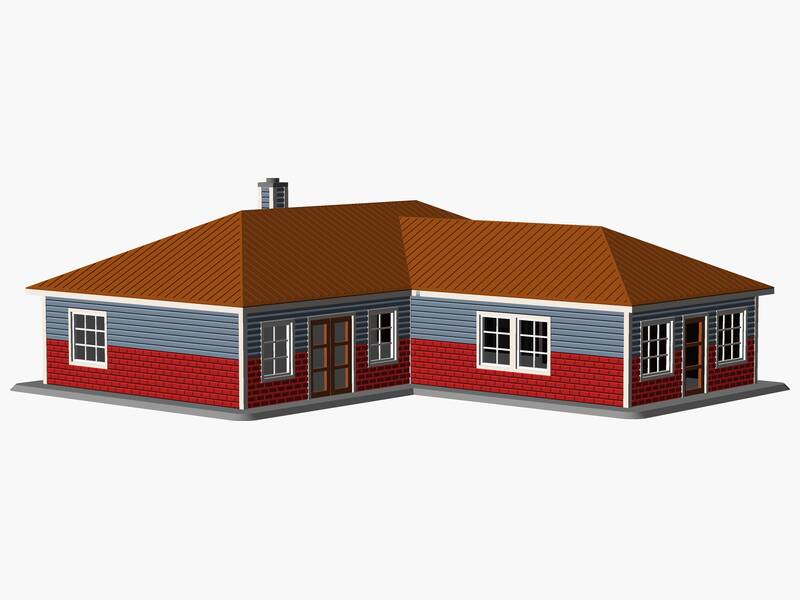

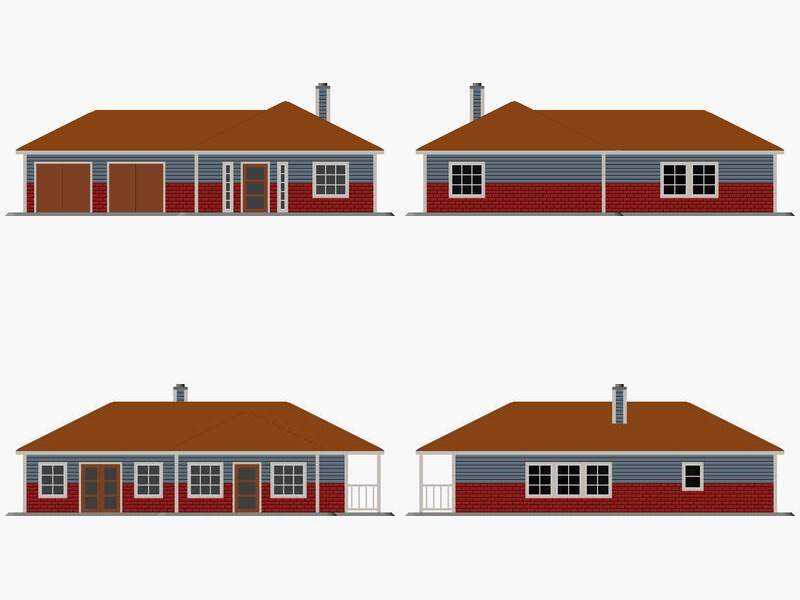

A 1/87 scale model of a ranch-style house. It features a 6/12 pitch hip roof. Exterior materials include brick veneer lower with vinyl or wood upper siding with a standing seam metal roof system. The structure includes 14 windows and 5 exterior doors. Architectural features include covered front porch, an attached garage, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 188 × 190 × 65 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 14
- Exterior Doors
- 5
- Roof Type
- Hip
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer lower with vinyl or wood upper exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings

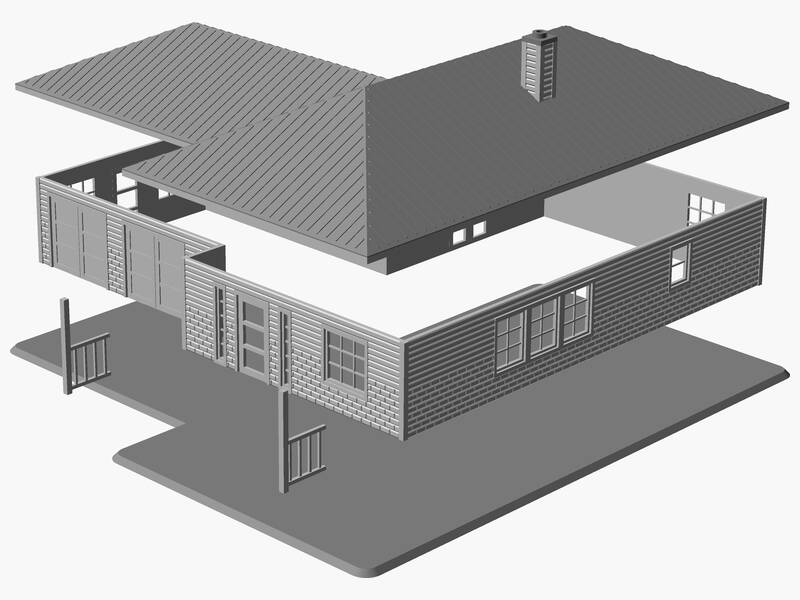

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 187.56 | 189.31 | 64.12 |
| Perimeter #1 | 170.03 | 157.76 | 28.05 |
| Wall #2 | 85.89 | 28.05 | 1.79 |
| Wall #3 | 14.02 | 28.05 | 1.75 |
| Wall #4 | 82.39 | 28.05 | 1.79 |
| Wall #5 | 68.36 | 28.05 | 1.79 |
| Wall #6 | 82.39 | 28.05 | 1.75 |
| Wall #7 | 73.62 | 28.05 | 1.79 |
| Wall #8 | 85.89 | 28.05 | 1.75 |
| Wall #9 | 156.01 | 28.05 | 1.75 |
| Roof #10 | 177.04 | 178.79 | 34.36 |
| Base #11 | 187.56 | 189.31 | 1.75 |
| Railing #12 | 15.78 | 28.05 | 1.75 |
| Railing #13 | 15.78 | 28.05 | 1.75 |
