Ranch House

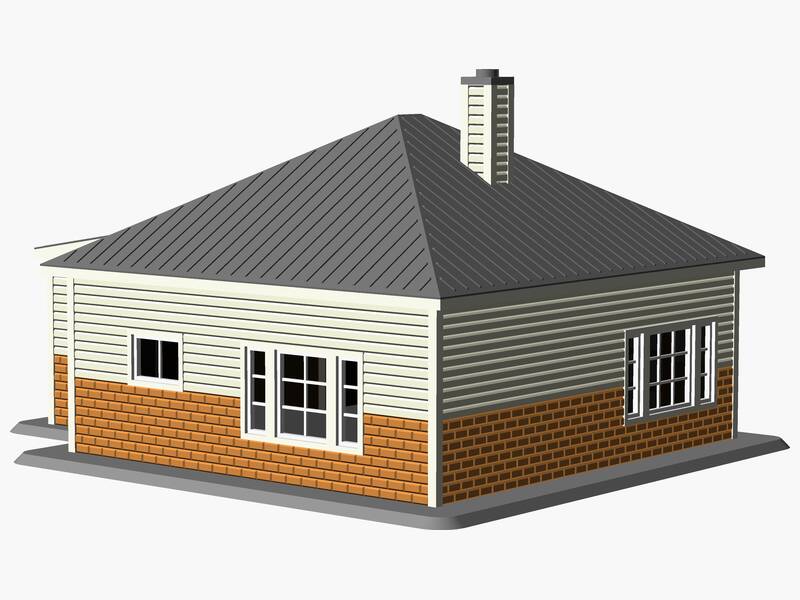

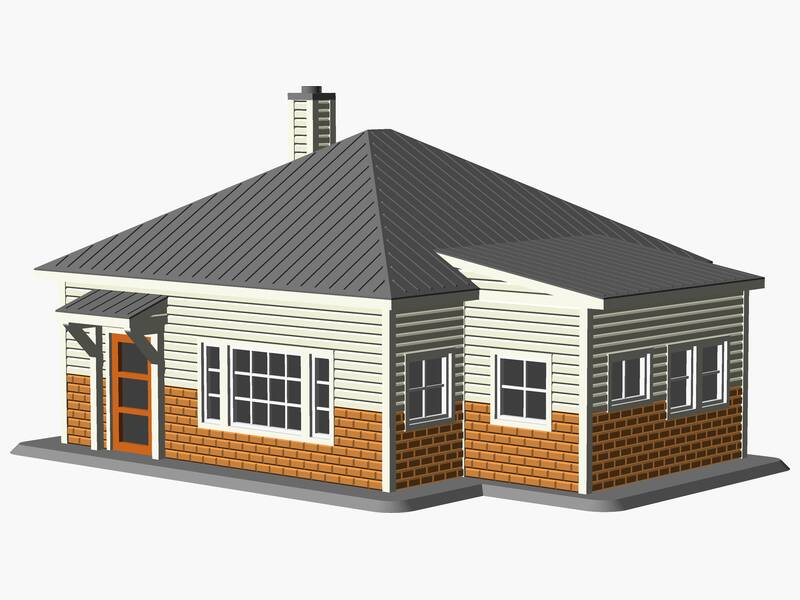

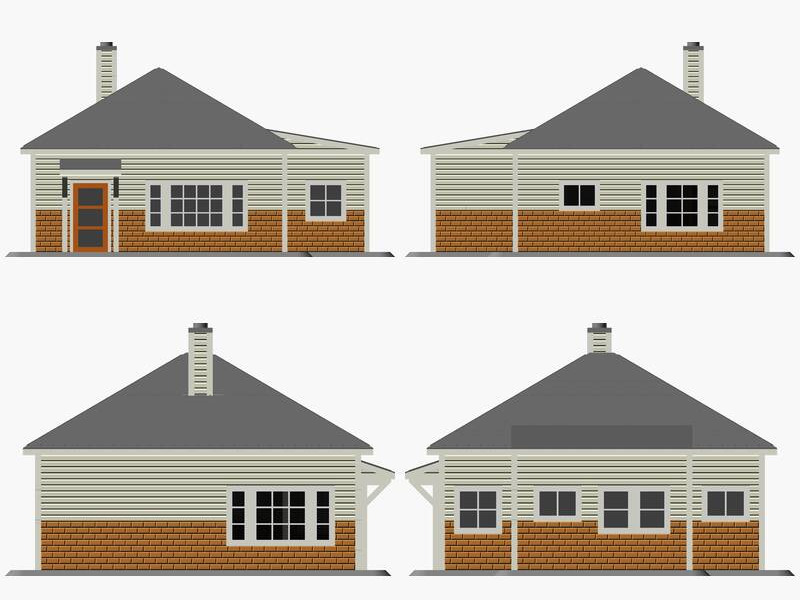

A 1/87 scale model of a ranch-style house. It features a 7/12 pitch hip roof. Exterior materials include brick veneer lower with vinyl or wood upper siding with a standing seam metal roof system. The structure includes 16 windows and a single exterior door. Architectural features include a side addition, chimney with enclosed chase. The assembled model measures approximately 134 × 114 × 74 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 16
- Exterior Doors
- 1
- Roof Type
- Hip
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer lower with vinyl or wood upper exterior siding
Features
- Side addition
- chimney with enclosed chase
- glass-panel door

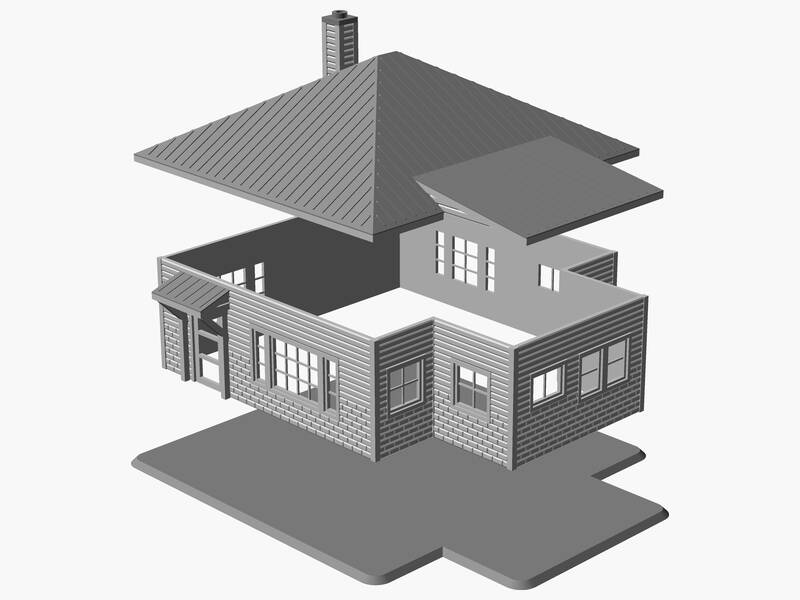

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 133.22 | 113.24 | 73.32 |
| Perimeter #1 | 115.69 | 104.47 | 33.30 |
| Wall #2 | 85.89 | 33.30 | 11.60 |
| Wall #3 | 21.03 | 33.30 | 1.75 |
| Wall #4 | 28.05 | 33.30 | 1.75 |
| Wall #5 | 50.83 | 33.30 | 1.75 |
| Wall #6 | 28.05 | 33.30 | 1.75 |
| Wall #7 | 21.03 | 33.30 | 1.75 |
| Wall #8 | 85.89 | 33.30 | 1.75 |
| Wall #9 | 92.90 | 33.30 | 1.75 |
| Roof #10 | 122.70 | 101.67 | 38.30 |
| Base #11 | 133.22 | 112.18 | 1.75 |
