KIT AC-1HLDRY
Architecture / House
Manual
Ranch House

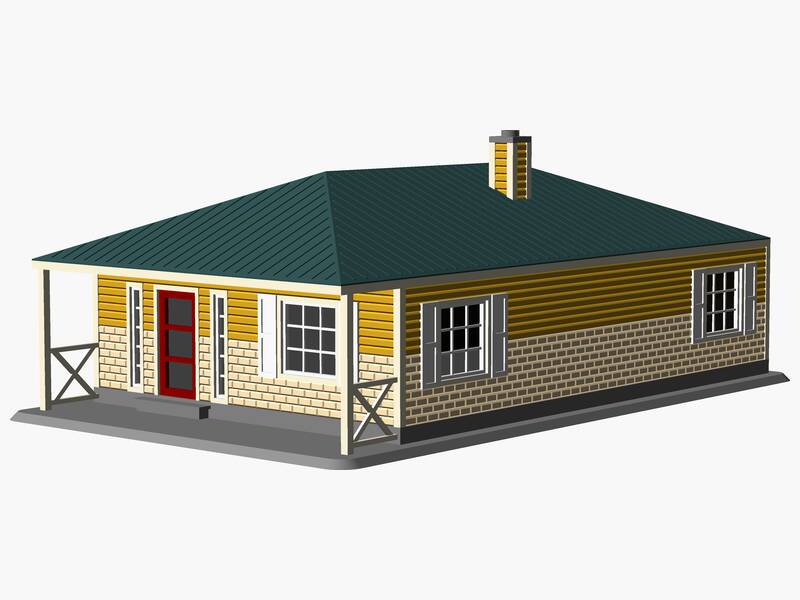

A 1/87 scale model of a ranch-style house. It features a 5/12 pitch hip roof. Exterior materials include brick veneer lower with vinyl or wood upper siding with a standing seam metal roof system. The structure includes 9 windows and a single exterior door. Architectural features include covered front porch, support posts and railings, window shutters, chimney with enclosed chase. The assembled model measures approximately 102 × 169 × 63 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 9
- Exterior Doors
- 1
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer lower with vinyl or wood upper exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Covered front porch
- chimney with enclosed chase
- glass-panel door
- support posts and railings
- window shutters
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 101.67 | 168.28 | 62.66 |
| Perimeter #1 | 91.85 | 144.05 | 31.55 |
| Wall #2 | 89.40 | 31.55 | 5.26 |
| Wall #3 | 138.48 | 31.55 | 2.10 |
| Wall #4 | 89.40 | 31.55 | 2.10 |
| Wall #5 | 138.48 | 31.55 | 2.10 |
| Roof #6 | 91.15 | 157.76 | 29.39 |
| Base #7 | 101.67 | 168.28 | 1.75 |
| Railing #8 | 15.78 | 31.55 | 1.75 |
| Railing #9 | 15.78 | 31.55 | 1.75 |
