KIT AC-19NDRY
Architecture / House
Manual
Ranch House

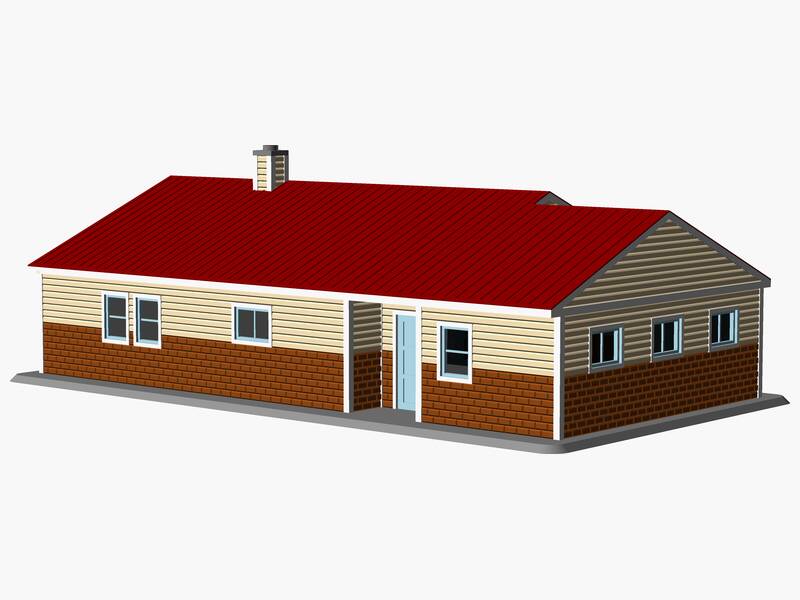

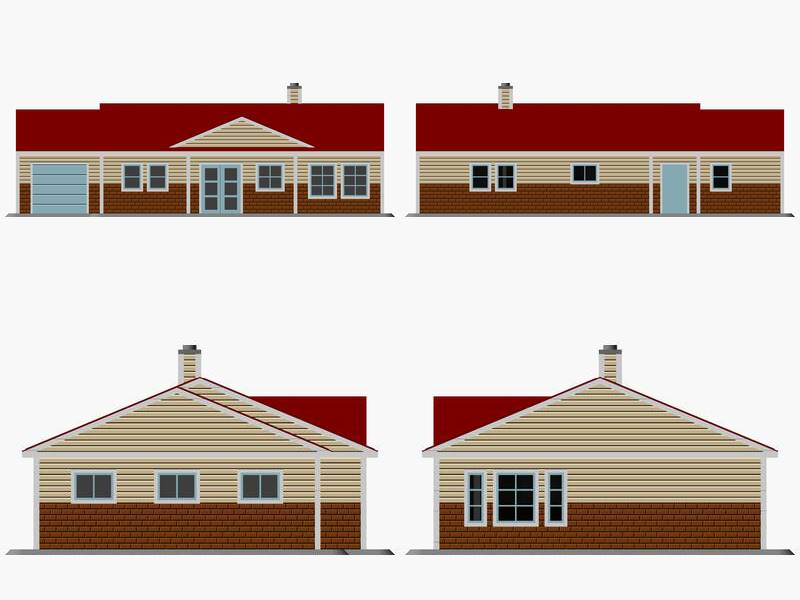

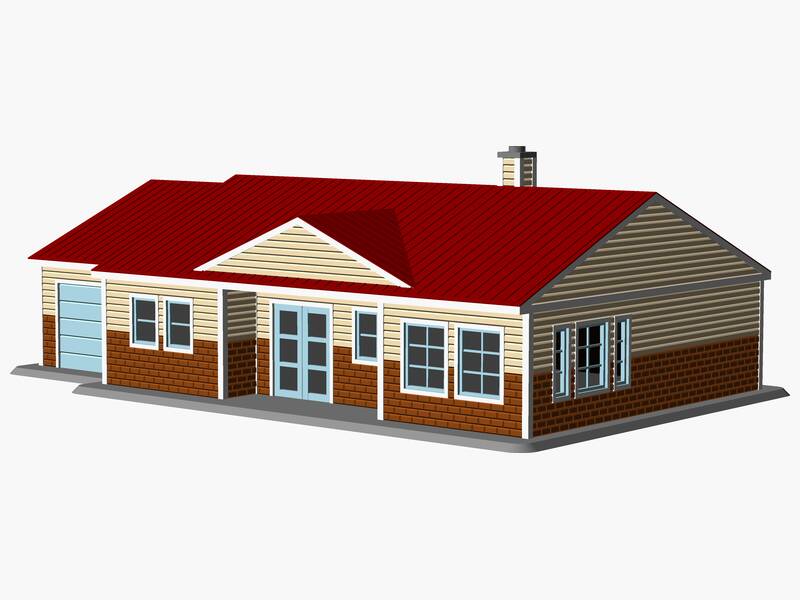

A 1/87 scale model of a ranch-style house. It features a 5/12 pitch gable roof. Exterior materials include brick veneer lower with vinyl or wood upper siding with a standing seam metal roof system. The structure includes 15 windows and 3 exterior doors. Architectural features include an overhead garage door, chimney with enclosed chase. The assembled model measures approximately 188 × 120 × 65 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 15
- Exterior Doors
- 3
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer lower with vinyl or wood upper exterior siding
Features
- Attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- overhead garage door

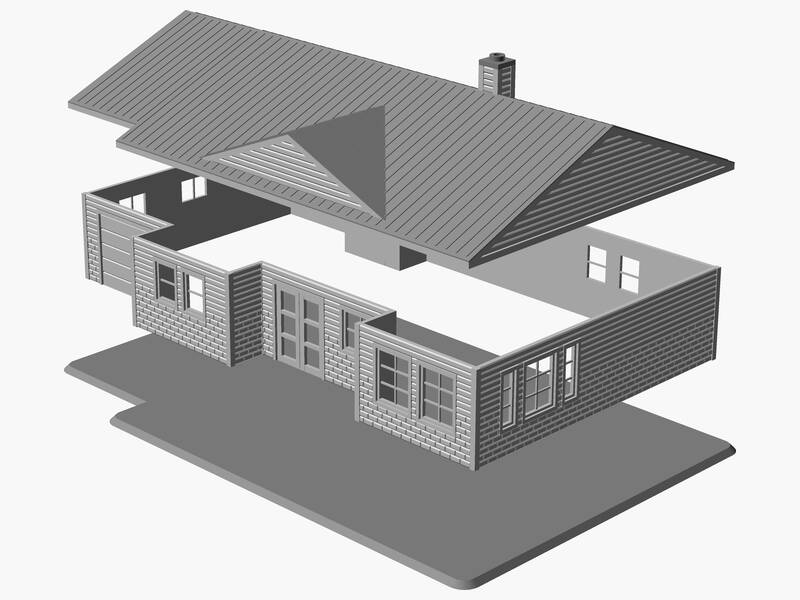

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 187.56 | 119.20 | 64.27 |
| Perimeter #1 | 177.04 | 101.67 | 28.05 |
| Wall #2 | 41.72 | 28.05 | 1.75 |
| Wall #3 | 12.27 | 28.05 | 1.75 |
| Wall #4 | 51.53 | 28.05 | 1.79 |
| Wall #5 | 12.27 | 28.05 | 1.75 |
| Wall #6 | 41.72 | 28.05 | 1.75 |
| Wall #7 | 14.02 | 28.05 | 1.75 |
| Wall #8 | 40.32 | 28.05 | 1.79 |
| Wall #9 | 85.89 | 28.05 | 1.75 |
| Wall #10 | 40.32 | 28.05 | 1.75 |
| Wall #11 | 12.27 | 28.05 | 1.75 |
| Wall #12 | 22.79 | 28.05 | 1.79 |
| Wall #13 | 12.27 | 28.05 | 1.75 |
| Wall #14 | 112.18 | 28.05 | 1.75 |
| Wall #15 | 99.91 | 28.05 | 1.75 |
| Roof #16 | 177.04 | 108.68 | 34.50 |
| Base #17 | 187.56 | 119.20 | 1.75 |
