KIT AB-4ARFRY
Architecture / House
Manual
Ranch House

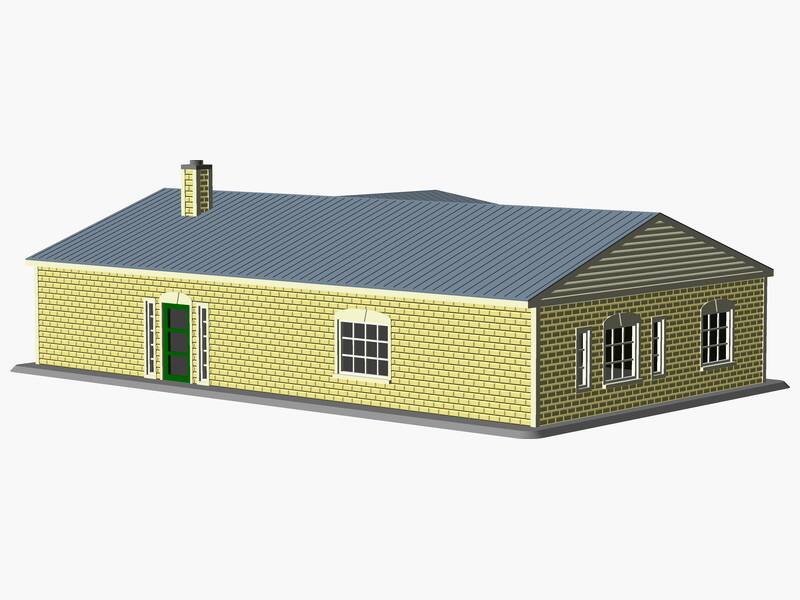

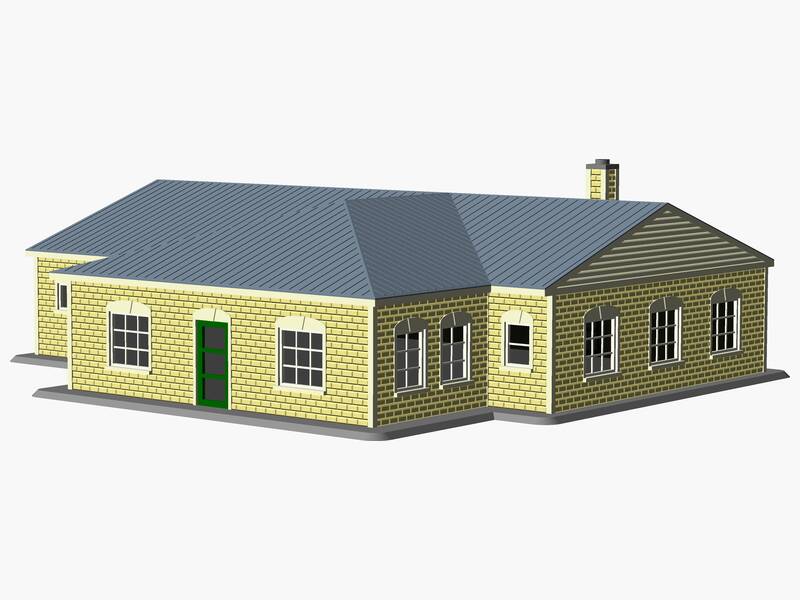

A 1/87 scale model of a ranch-style house. It features a 4/12 pitch hip roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 19 windows and 2 exterior doors. Architectural features include chimney with enclosed chase. The assembled model measures approximately 211 × 179 × 66 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 19
- Exterior Doors
- 2
- Roof Type
- Hip
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Chimney with enclosed chase
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 210.34 | 178.79 | 65.87 |
| Perimeter #1 | 201.58 | 163.02 | 31.55 |
| Wall #2 | 110.43 | 31.55 | 2.66 |
| Wall #3 | 49.08 | 31.55 | 2.63 |
| Wall #4 | 66.61 | 31.55 | 2.63 |
| Wall #5 | 110.43 | 31.55 | 2.63 |
| Wall #6 | 198.07 | 31.55 | 2.66 |
| Wall #7 | 110.43 | 31.55 | 2.63 |
| Wall #8 | 21.03 | 31.55 | 2.63 |
| Wall #9 | 49.08 | 31.55 | 2.63 |
| Roof #10 | 199.83 | 168.28 | 32.60 |
| Base #11 | 210.34 | 178.79 | 1.75 |
