KIT AB-3FN5RY
Architecture / House
Manual

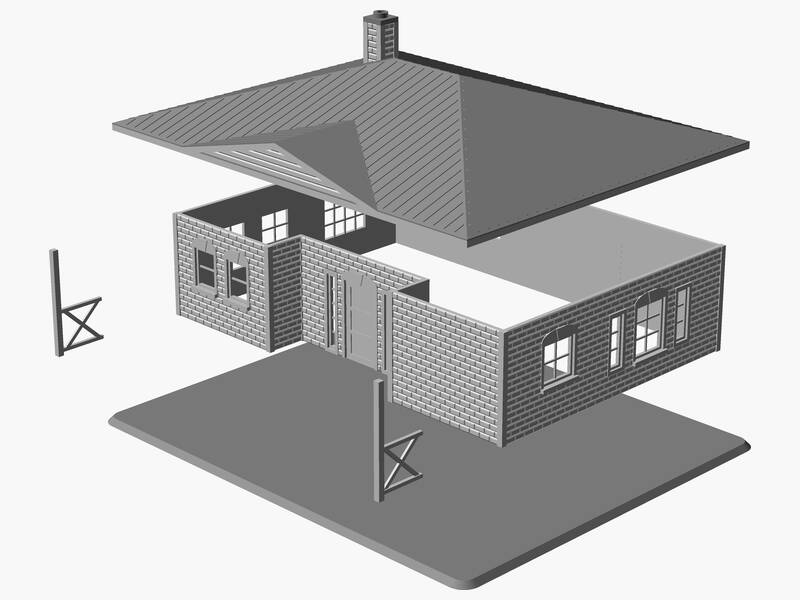

A 1/87 scale model of a ranch-style house. It features a 4/12 pitch hip roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 12 windows and 2 exterior doors. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 148 × 123 × 65 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 12
- Exterior Doors
- 2
- Roof Type
- Hip
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Covered front porch
- chimney with enclosed chase
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 147.24 | 122.70 | 64.12 |
| Perimeter #1 | 131.47 | 92.90 | 31.55 |
| Wall #2 | 39.61 | 31.55 | 2.63 |
| Wall #3 | 12.27 | 31.55 | 1.75 |
| Wall #4 | 48.73 | 31.55 | 2.14 |
| Wall #5 | 12.27 | 31.55 | 1.75 |
| Wall #6 | 39.61 | 31.55 | 1.75 |
| Wall #7 | 89.40 | 31.55 | 2.63 |
| Wall #8 | 127.96 | 31.55 | 2.66 |
| Wall #9 | 89.40 | 31.55 | 2.63 |
| Roof #10 | 136.72 | 112.18 | 30.85 |
| Base #11 | 147.24 | 122.70 | 1.75 |
| Railing #12 | 15.78 | 31.55 | 1.75 |
| Railing #13 | 15.78 | 31.55 | 1.75 |
