KIT AB-37P5RY
Architecture / House
Manual
Ranch House

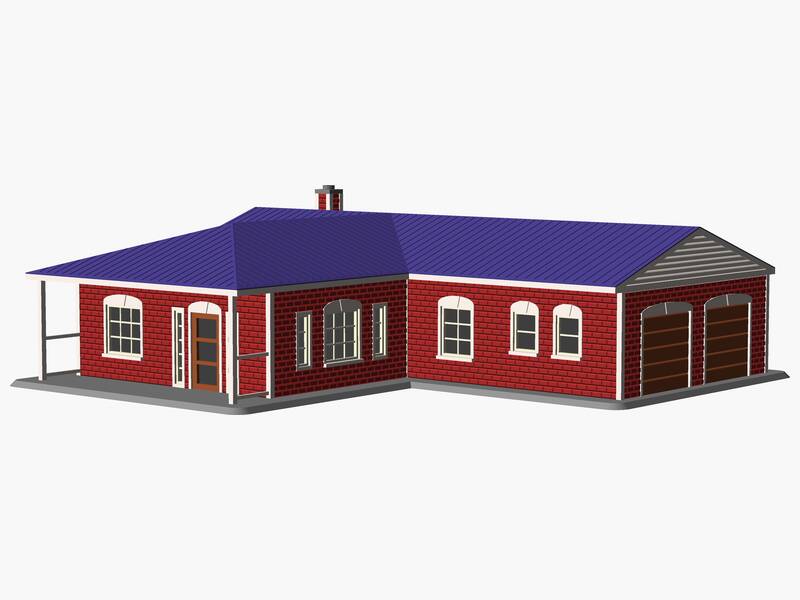

A 1/87 scale model of a ranch-style house. It features a 4/12 pitch hip roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 18 windows and 4 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 197 × 179 × 59 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 18
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Covered front porch
- chimney with enclosed chase
- double-panel door
- glass-panel door
- overhead garage door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 196.32 | 178.79 | 58.86 |
| Perimeter #1 | 187.03 | 148.99 | 31.55 |
| Wall #2 | 82.39 | 31.55 | 2.66 |
| Wall #3 | 63.10 | 31.55 | 2.63 |
| Wall #4 | 80.63 | 31.55 | 2.63 |
| Wall #5 | 82.39 | 31.55 | 2.14 |
| Wall #6 | 184.05 | 31.55 | 2.66 |
| Wall #7 | 82.39 | 31.55 | 2.63 |
| Wall #8 | 21.03 | 31.55 | 2.63 |
| Wall #9 | 63.10 | 31.55 | 2.63 |
| Roof #10 | 185.80 | 168.28 | 25.59 |
| Base #11 | 196.32 | 178.79 | 1.75 |
| Railing #12 | 15.78 | 31.55 | 1.75 |
| Railing #13 | 15.78 | 31.55 | 1.75 |
