Ranch House

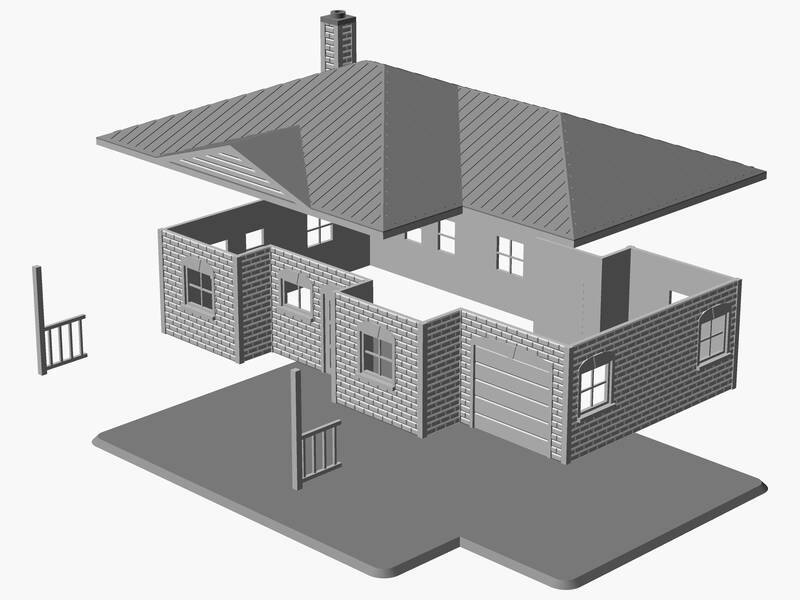

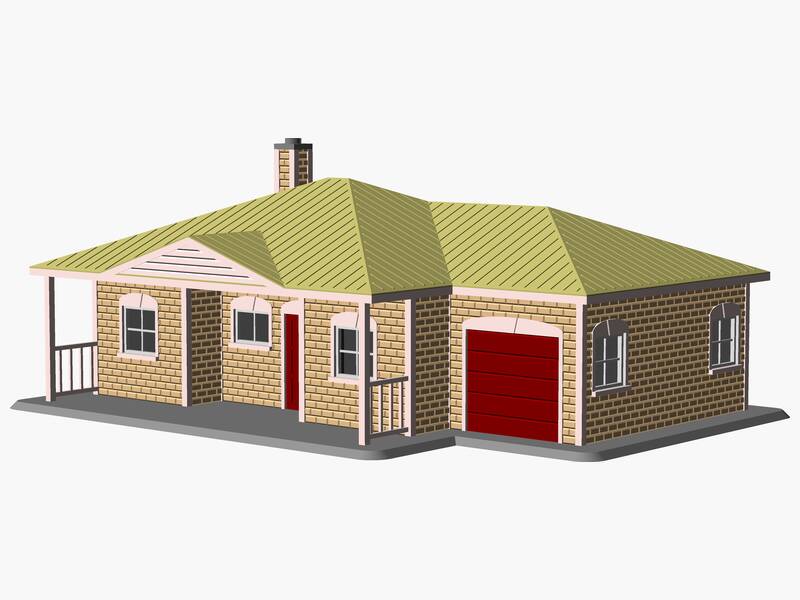

A 1/87 scale model of a ranch-style house. It features a 5/12 pitch hip roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 12 windows and 3 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 160 × 116 × 67 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 12
- Exterior Doors
- 3
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Covered front porch
- chimney with enclosed chase
- double-panel door
- overhead garage door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 159.51 | 115.69 | 66.75 |
| Perimeter #1 | 143.74 | 85.89 | 31.55 |
| Wall #2 | 32.25 | 31.55 | 2.63 |
| Wall #3 | 12.27 | 31.55 | 1.75 |
| Wall #4 | 38.91 | 31.55 | 2.66 |
| Wall #5 | 12.27 | 31.55 | 1.75 |
| Wall #6 | 32.25 | 31.55 | 2.63 |
| Wall #7 | 14.02 | 31.55 | 1.75 |
| Wall #8 | 36.81 | 31.55 | 2.14 |
| Wall #9 | 68.36 | 31.55 | 2.63 |
| Wall #10 | 36.81 | 31.55 | 2.63 |
| Wall #11 | 12.27 | 31.55 | 1.75 |
| Wall #12 | 22.79 | 31.55 | 2.14 |
| Wall #13 | 12.27 | 31.55 | 1.75 |
| Wall #14 | 80.63 | 31.55 | 2.63 |
| Wall #15 | 82.39 | 31.55 | 2.63 |
| Roof #16 | 148.99 | 105.17 | 33.48 |
| Base #17 | 159.51 | 115.69 | 1.75 |
| Railing #18 | 15.78 | 31.55 | 1.75 |
| Railing #19 | 15.78 | 31.55 | 1.75 |
