KIT AH-0FR5RY
Architecture / House
Manual
Multifamily two-story House

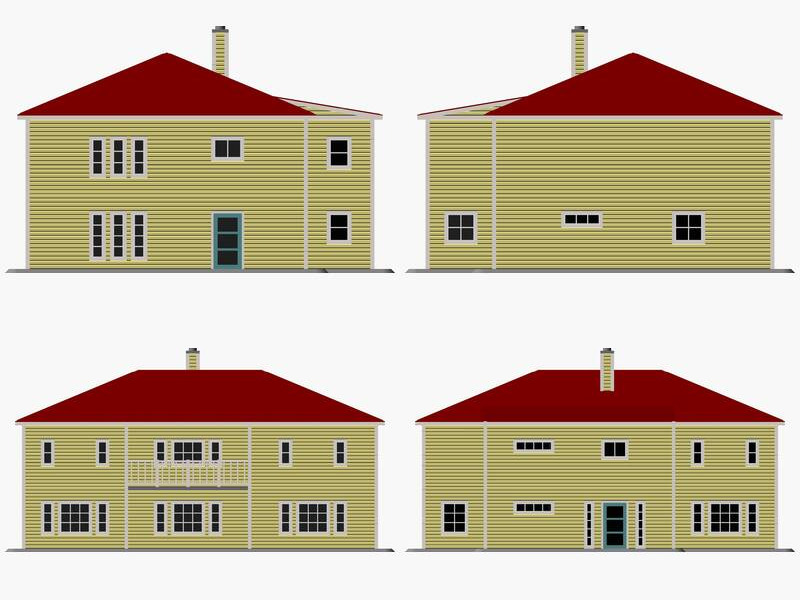

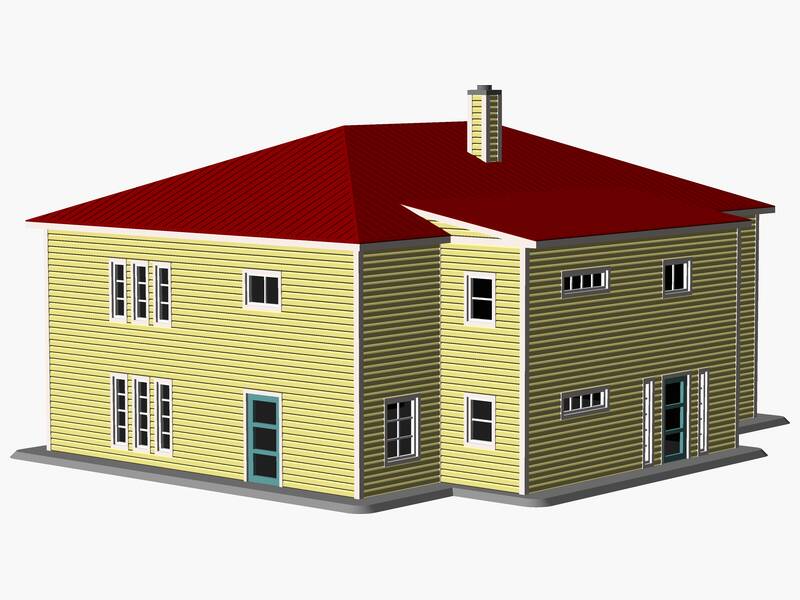

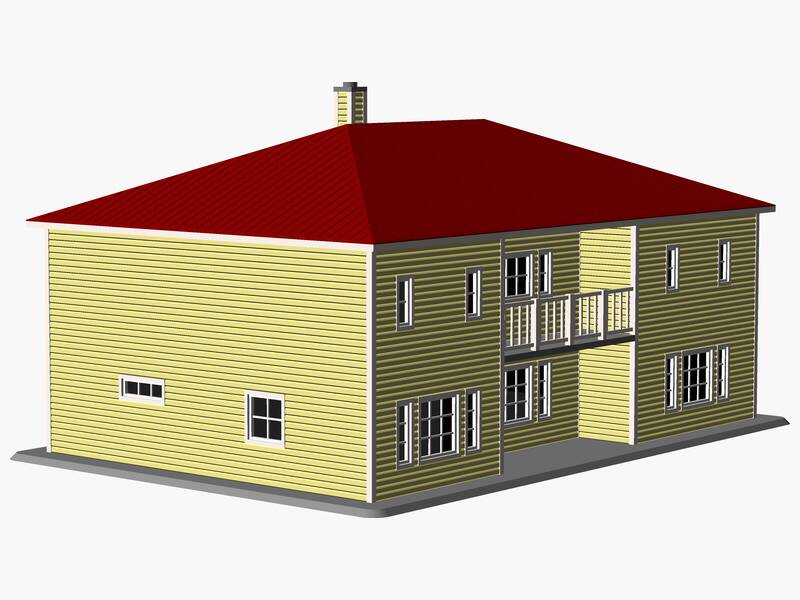

A 1/87 scale model of a multifamily two-story-style house. It features a 5/12 pitch hip roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 39 windows and 4 exterior doors. Architectural features include balcony with guardrail, a side addition, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 165 × 200 × 105 mm.
Specifications
- Type
- Multifamily two-story
- Scale
- 1/87
- Wall Panels
- 12
- Windows
- 39
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Side addition
- balcony with guardrail
- chimney with enclosed chase
- glass-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 164.77 | 199.83 | 104.44 |
| Perimeter #1 | 147.24 | 182.30 | 63.10 |
| Wall #2 | 117.44 | 63.10 | 1.79 |
| Wall #3 | 64.86 | 63.10 | 1.75 |
| Wall #4 | 19.28 | 63.10 | 1.75 |
| Wall #5 | 63.10 | 63.10 | 1.75 |
| Wall #6 | 19.28 | 63.10 | 1.79 |
| Wall #7 | 52.59 | 63.10 | 1.75 |
| Wall #8 | 117.44 | 63.10 | 1.75 |
| Wall #9 | 52.59 | 63.10 | 1.75 |
| Wall #10 | 28.05 | 63.10 | 1.75 |
| Wall #11 | 96.41 | 63.10 | 1.79 |
| Wall #12 | 28.05 | 63.10 | 1.75 |
| Wall #13 | 31.55 | 63.10 | 1.75 |
| Roof #14 | 154.25 | 189.31 | 39.61 |
| Base #15 | 164.77 | 199.83 | 1.75 |
| Balcony #16 | 61.35 | 19.28 | 1.75 |
| Guardrail #17 | 61.31 | 14.02 | 1.75 |
