KIT AG-2FS5RY
Architecture / House
Manual

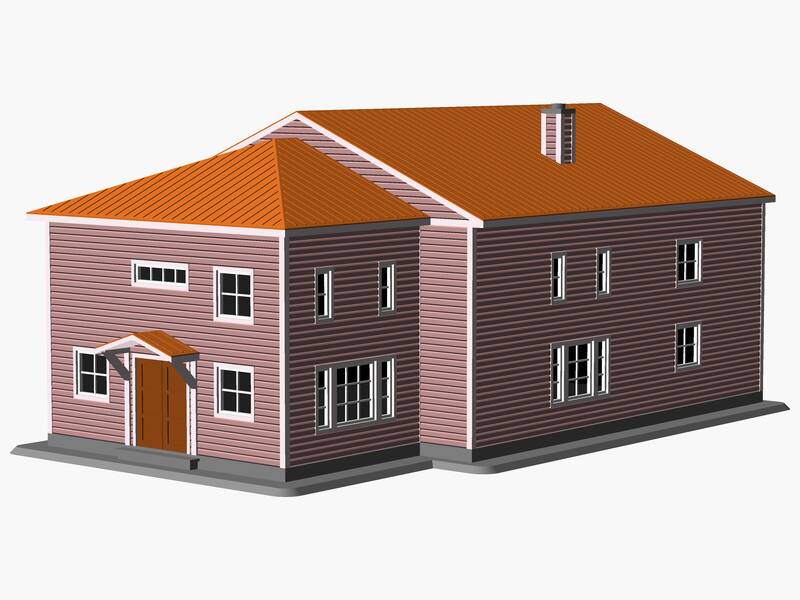

Two-story House
A 1/87 scale model of a two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 27 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 141 × 212 × 94 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 27
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Chimney with enclosed chase
- double-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 140.23 | 211.40 | 93.48 |
| Perimeter #1 | 122.70 | 206.14 | 61.35 |
| Wall #2 | 85.89 | 61.35 | 11.60 |
| Wall #3 | 52.59 | 61.35 | 1.75 |
| Wall #4 | 17.53 | 61.35 | 1.75 |
| Wall #5 | 141.98 | 61.35 | 1.75 |
| Wall #6 | 120.95 | 61.35 | 1.75 |
| Wall #7 | 141.98 | 61.35 | 1.75 |
| Wall #8 | 17.53 | 61.35 | 1.75 |
| Wall #9 | 52.59 | 61.35 | 1.75 |
| Roof #10 | 129.71 | 199.83 | 30.41 |
| Base #11 | 140.23 | 210.34 | 1.75 |
