KIT AF-56R5RY
Architecture / House
Manual

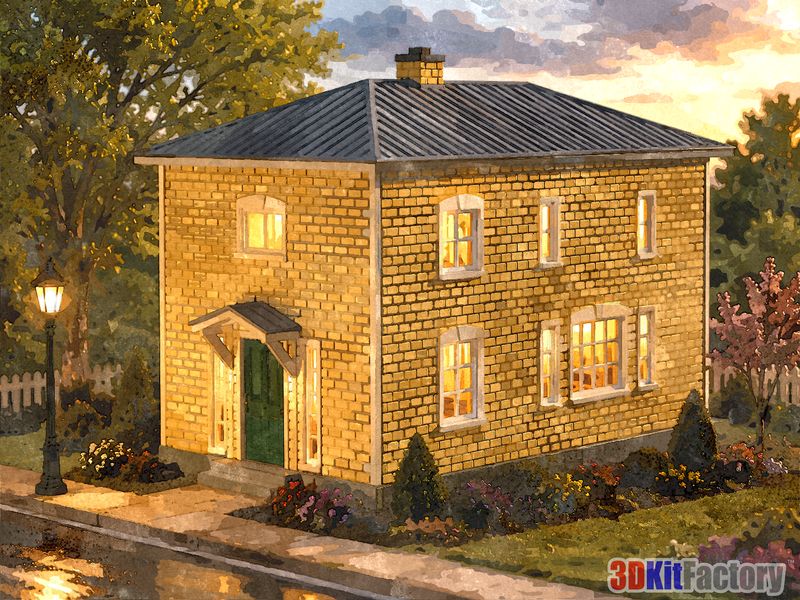

Two-story House
A 1/87 scale model of a two-story-style house. It features a 5/12 pitch hip roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 20 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 78 × 131 × 84 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 20
- Exterior Doors
- 1
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Chimney with enclosed chase
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 77.13 | 130.76 | 83.55 |
| Perimeter #1 | 61.35 | 122.88 | 59.60 |
| Wall #2 | 57.84 | 59.60 | 11.60 |
| Wall #3 | 110.43 | 59.60 | 2.63 |
| Wall #4 | 57.84 | 59.60 | 2.63 |
| Wall #5 | 110.43 | 59.60 | 2.63 |
| Roof #6 | 66.61 | 119.20 | 22.23 |
| Base #7 | 77.13 | 129.71 | 1.75 |
