KIT AE-0PLDRY
Architecture / House
Manual

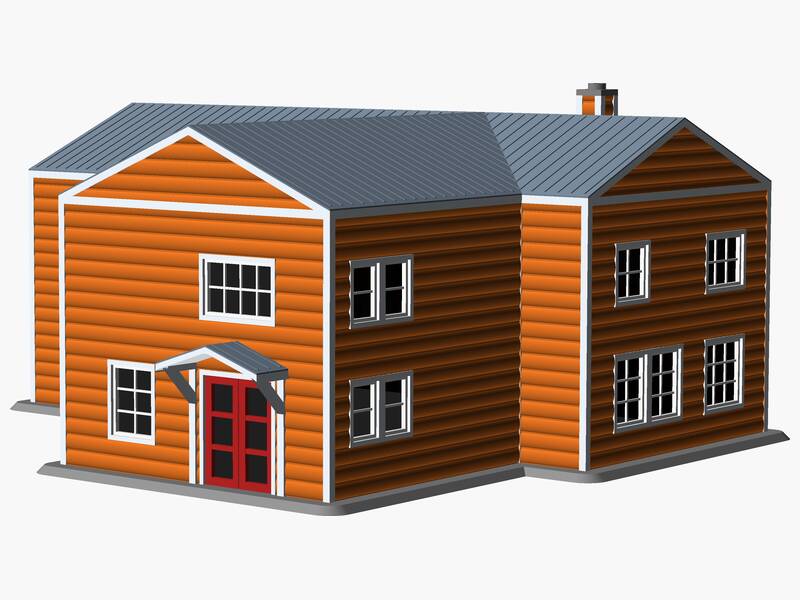

Two-story House

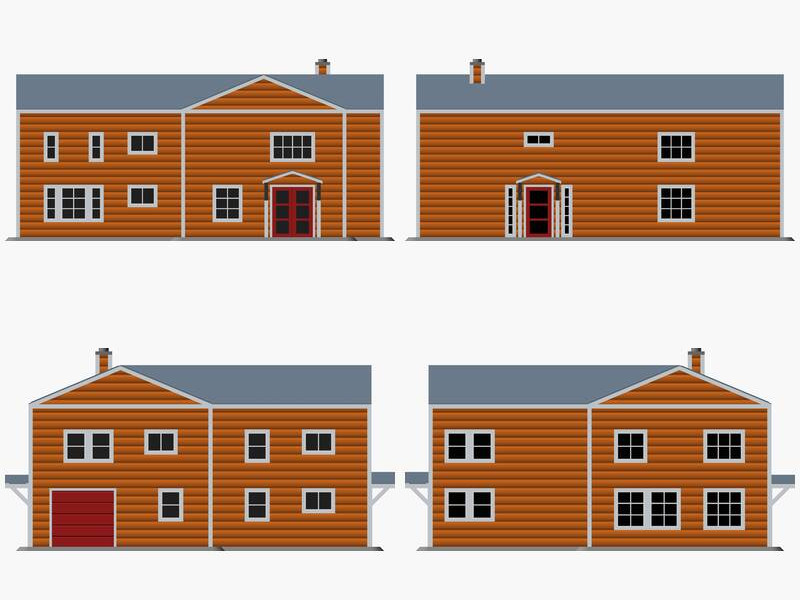

A 1/87 scale model of a two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 31 windows and 3 exterior doors. Architectural features include an overhead garage door, chimney with enclosed chase. The assembled model measures approximately 183 × 164 × 85 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 31
- Exterior Doors
- 3
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- overhead garage door

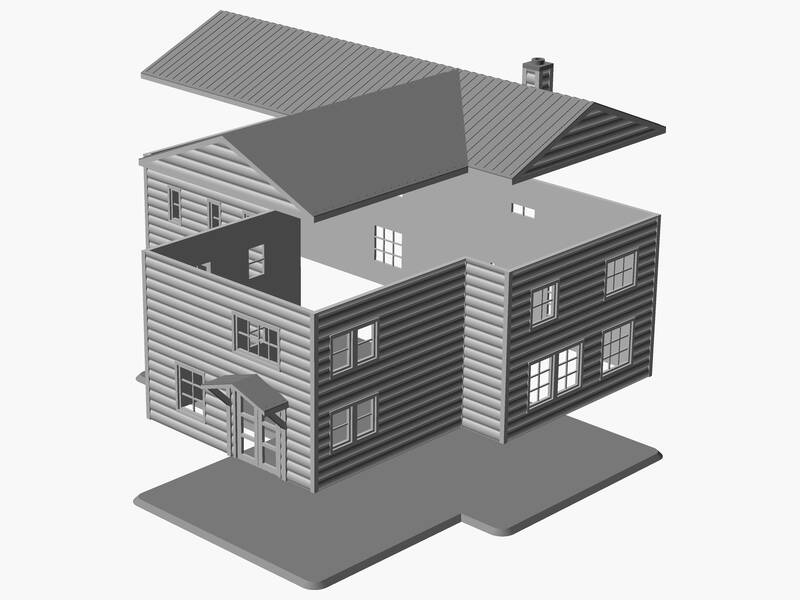

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 182.30 | 163.37 | 84.86 |
| Perimeter #1 | 171.78 | 163.37 | 57.84 |
| Wall #2 | 75.37 | 57.84 | 11.60 |
| Wall #3 | 66.61 | 57.84 | 1.75 |
| Wall #4 | 77.13 | 57.84 | 1.75 |
| Wall #5 | 75.37 | 57.84 | 1.79 |
| Wall #6 | 170.03 | 57.84 | 11.60 |
| Wall #7 | 75.37 | 57.84 | 1.75 |
| Wall #8 | 17.53 | 57.84 | 1.75 |
| Wall #9 | 66.61 | 57.84 | 1.75 |
| Roof #10 | 171.78 | 143.74 | 25.30 |
| Base #11 | 182.30 | 154.25 | 1.75 |
