KIT AE-0LS5RY
Architecture / House
Manual

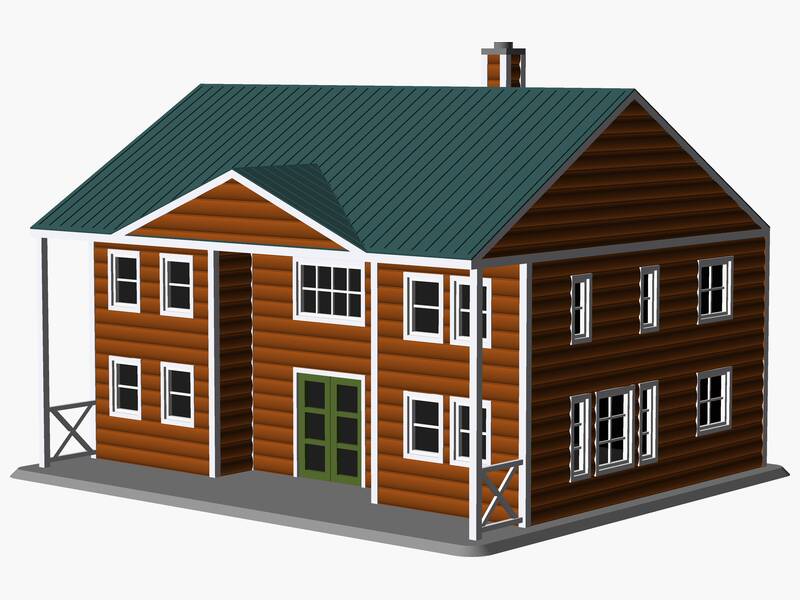

Two-story House

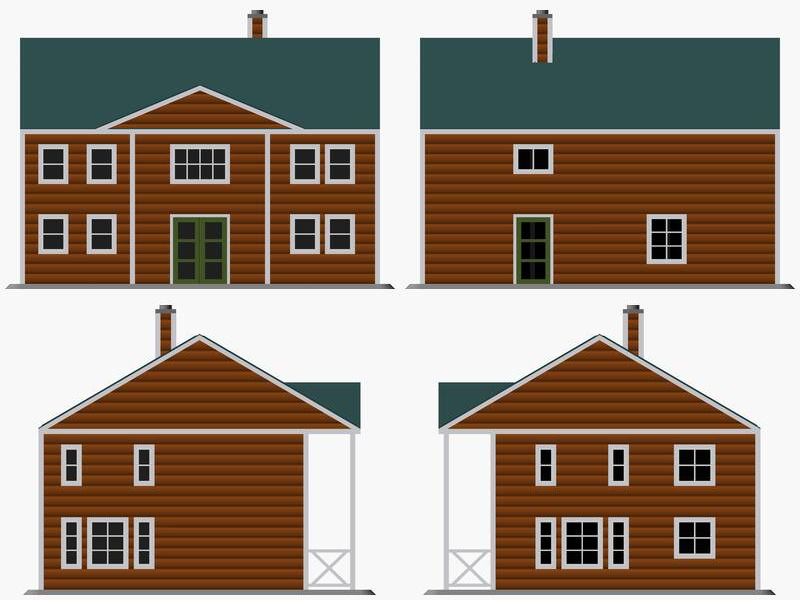

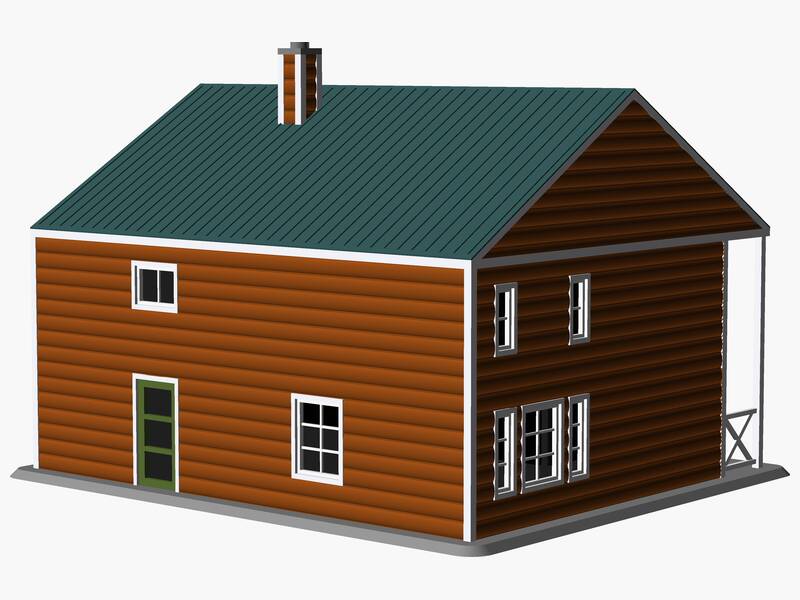

A 1/87 scale model of a two-story-style house. It features a 7/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 23 windows and 2 exterior doors. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 137 × 120 × 98 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 23
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Covered front porch
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings

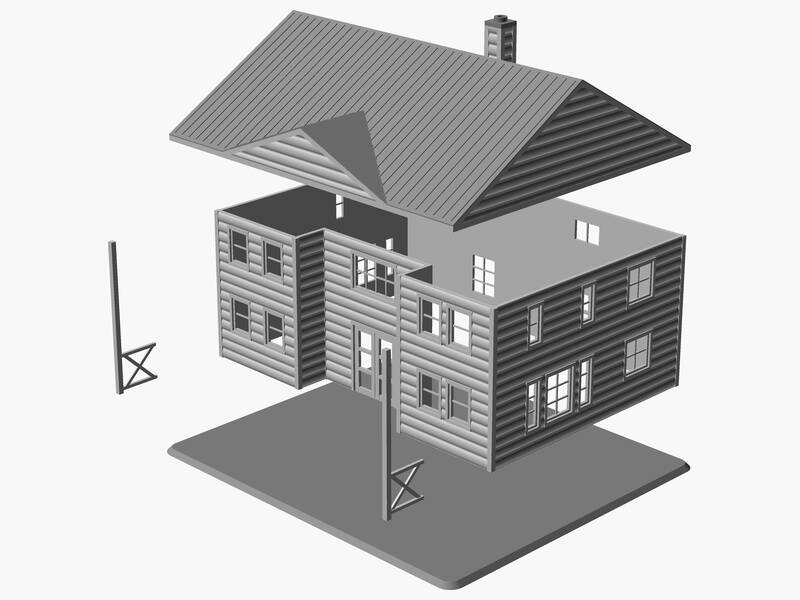

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 136.72 | 119.20 | 97.86 |
| Perimeter #1 | 126.21 | 91.15 | 52.59 |
| Wall #2 | 38.56 | 52.59 | 1.75 |
| Wall #3 | 12.27 | 52.59 | 1.75 |
| Wall #4 | 47.33 | 52.59 | 1.79 |
| Wall #5 | 12.27 | 52.59 | 1.75 |
| Wall #6 | 38.56 | 52.59 | 1.75 |
| Wall #7 | 89.40 | 52.59 | 1.75 |
| Wall #8 | 124.45 | 52.59 | 1.79 |
| Wall #9 | 89.40 | 52.59 | 1.75 |
| Roof #10 | 126.21 | 108.68 | 43.56 |
| Base #11 | 136.72 | 119.20 | 1.75 |
| Railing #12 | 15.78 | 52.59 | 1.75 |
| Railing #13 | 15.78 | 52.59 | 1.75 |
