KIT AC-0PP5RY
Architecture / House
Manual

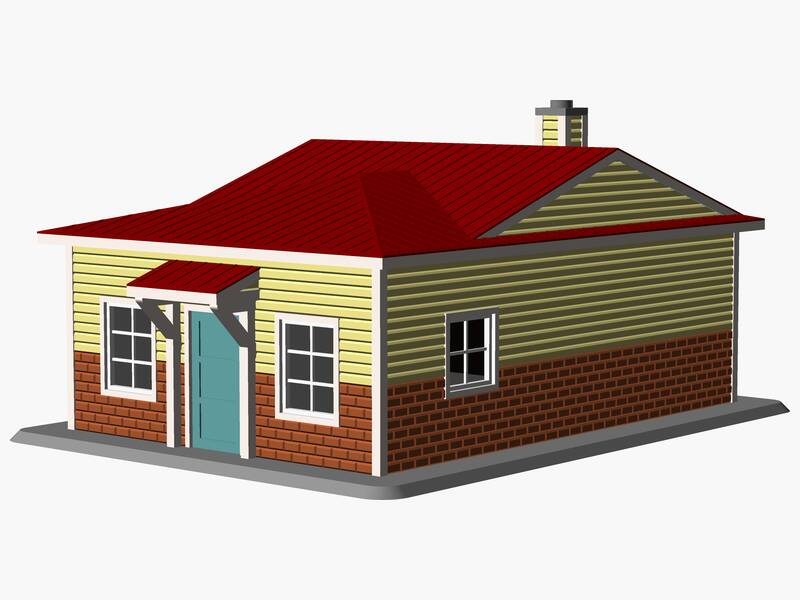

Ranch House
A 1/87 scale model of a ranch-style house. It features a 4/12 pitch gable roof. Exterior materials include brick veneer lower with vinyl or wood upper siding with a standing seam metal roof system. The structure includes 8 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 92 × 124 × 60 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 8
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer lower with vinyl or wood upper exterior siding
Features
- Chimney with enclosed chase

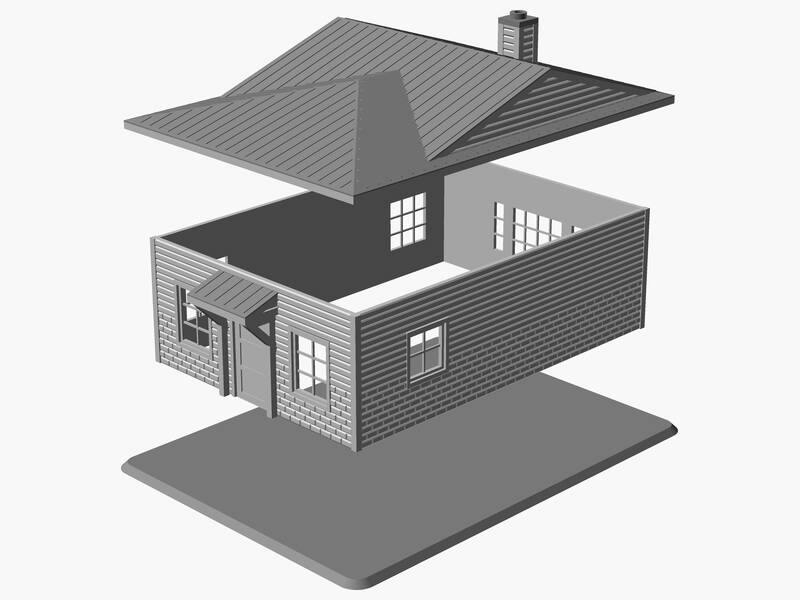

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 91.15 | 123.75 | 59.91 |
| Perimeter #1 | 73.62 | 114.99 | 33.30 |
| Wall #2 | 71.87 | 33.30 | 11.60 |
| Wall #3 | 103.42 | 33.30 | 1.75 |
| Wall #4 | 71.87 | 33.30 | 1.75 |
| Wall #5 | 103.42 | 33.30 | 1.75 |
| Roof #6 | 80.63 | 112.18 | 24.89 |
| Base #7 | 91.15 | 122.70 | 1.75 |
