KIT AB-48RFRY
Architecture / House
Manual
Ranch House

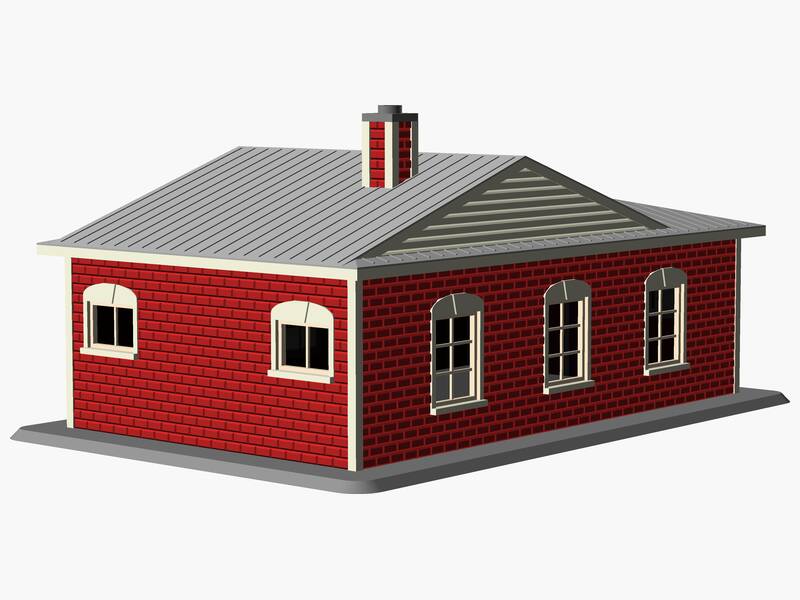

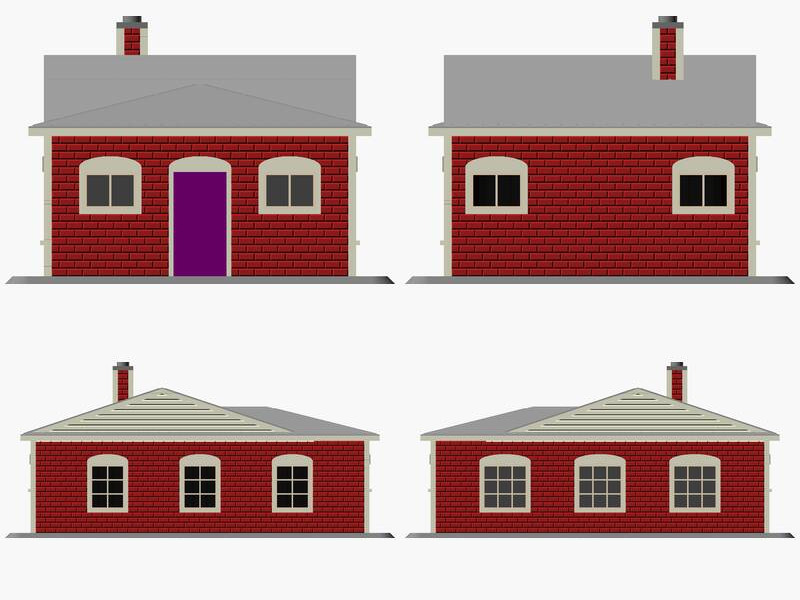

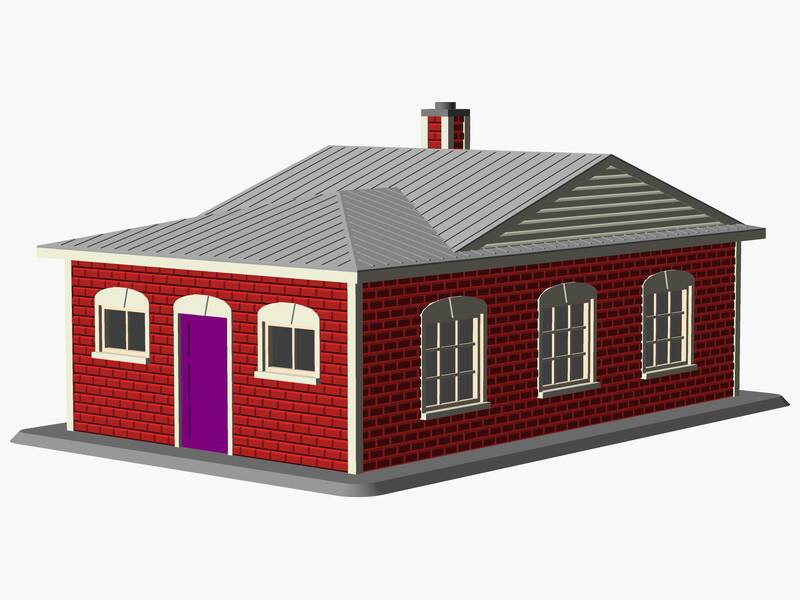

A 1/87 scale model of a ranch-style house. It features a 4/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 10 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 88 × 134 × 61 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 10
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Chimney with enclosed chase
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 87.64 | 133.22 | 60.26 |
| Perimeter #1 | 71.87 | 117.44 | 31.55 |
| Wall #2 | 68.36 | 31.55 | 2.66 |
| Wall #3 | 113.94 | 31.55 | 2.63 |
| Wall #4 | 68.36 | 31.55 | 2.63 |
| Wall #5 | 113.94 | 31.55 | 2.63 |
| Roof #6 | 77.13 | 122.70 | 26.99 |
| Base #7 | 87.64 | 133.22 | 1.75 |
