KIT AB-3AN5RY
Architecture / House
Manual
Ranch House

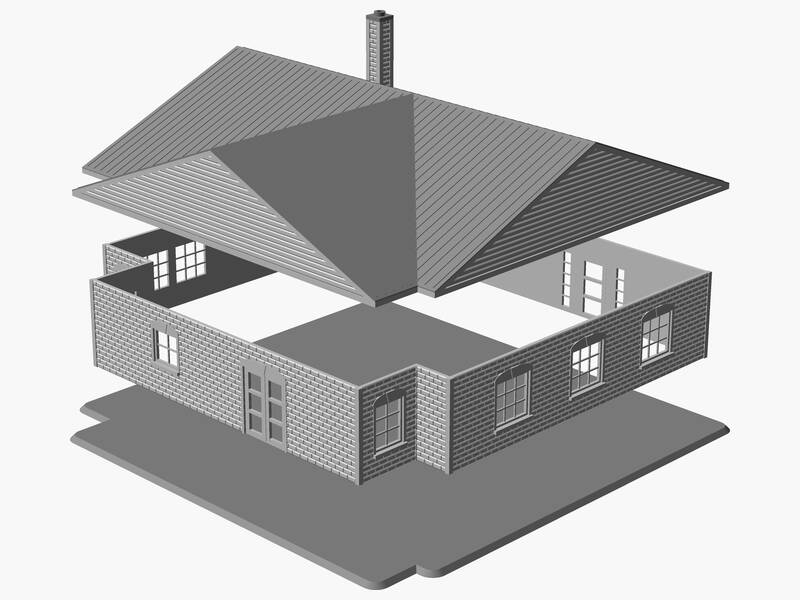

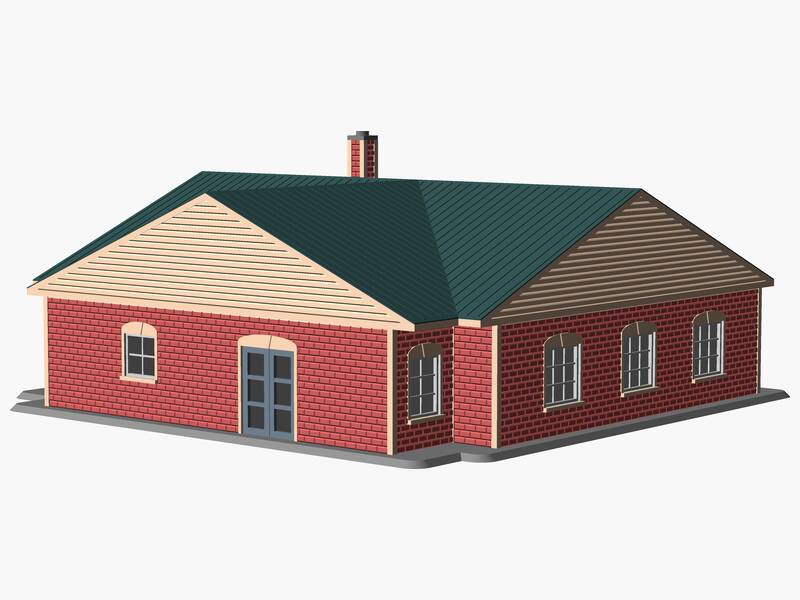

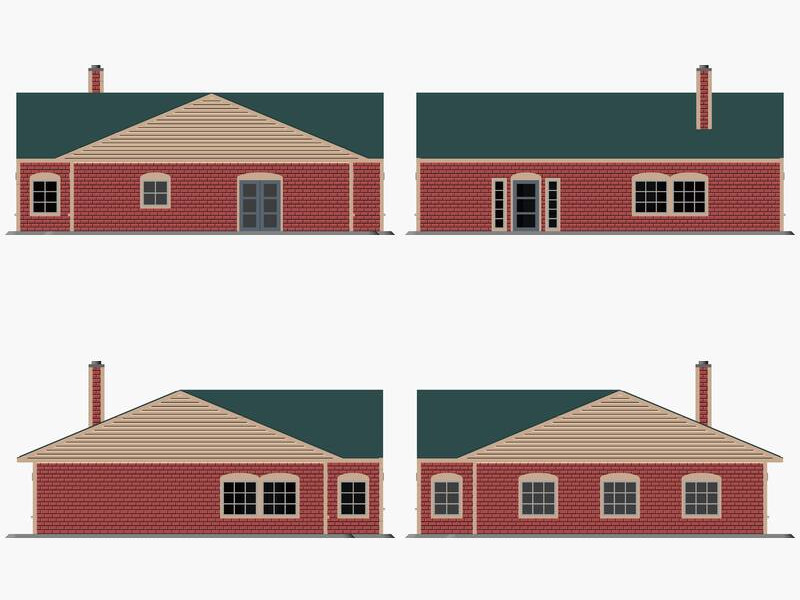

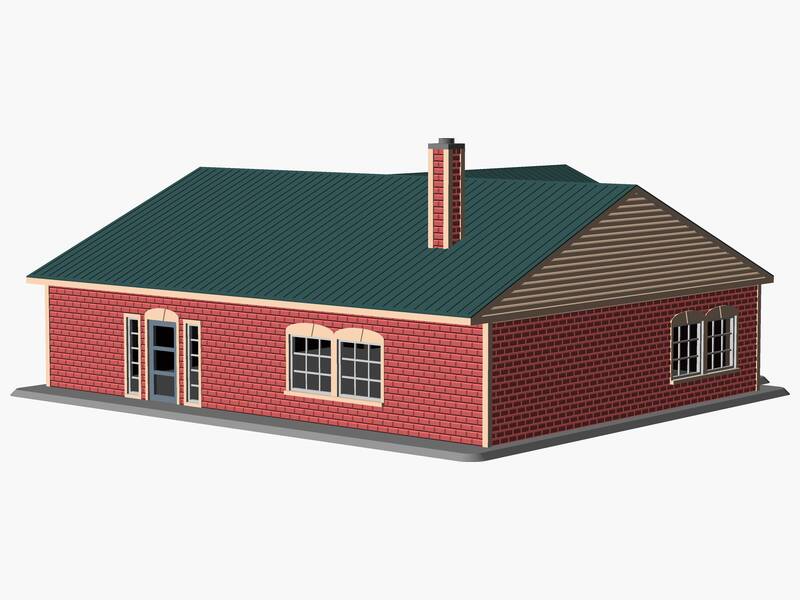

A 1/87 scale model of a ranch-style house. It features a 5/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 13 windows and 2 exterior doors. Architectural features include chimney with enclosed chase. The assembled model measures approximately 179 × 172 × 78.00 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 13
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Chimney with enclosed chase
- double-panel door
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 178.79 | 171.78 | 78.00 |
| Perimeter #1 | 170.03 | 156.01 | 31.55 |
| Wall #2 | 127.96 | 31.55 | 2.66 |
| Wall #3 | 24.54 | 31.55 | 2.63 |
| Wall #4 | 14.02 | 31.55 | 1.75 |
| Wall #5 | 127.96 | 31.55 | 2.63 |
| Wall #6 | 166.52 | 31.55 | 2.66 |
| Wall #7 | 127.96 | 31.55 | 2.63 |
| Wall #8 | 24.54 | 31.55 | 2.63 |
| Wall #9 | 24.54 | 31.55 | 2.63 |
| Roof #10 | 168.28 | 161.26 | 44.73 |
| Base #11 | 178.79 | 171.78 | 1.75 |
